QTAC 70EMS-L

Base Price
$6,695.00

The QTAC 70EMS-L is a firefighting and EMS skid that is lightweight and versatile, featuring a fixed rescue litter platform, a storage area and flooded suction.

70EMS-L, KOSHIN SEH-40H, Manual Hannay Reel, 75' Hose, Brass Bulls-eye Nozzle: $6,695.00

70EMS-L, WATERAX VERSAX 6, Manual Hannay Reel, 75' Hose, Brass Bulls-eye Nozzle: $7,495.00

Hannay Electric Hose Reel Upgrade: $750

Place Order

$500 flat rate shipping charge to any commercial address in the contiguous U.S., depending on location. Does not include additional services such as a liftgate or residential delivery.

QTAC Proposition 65 InformationWARNING: Cancer and Reproductive Harm https://www.p65warnings.ca.gov/

QTAC 70EMS-L
overview

QTAC 70EMS-L

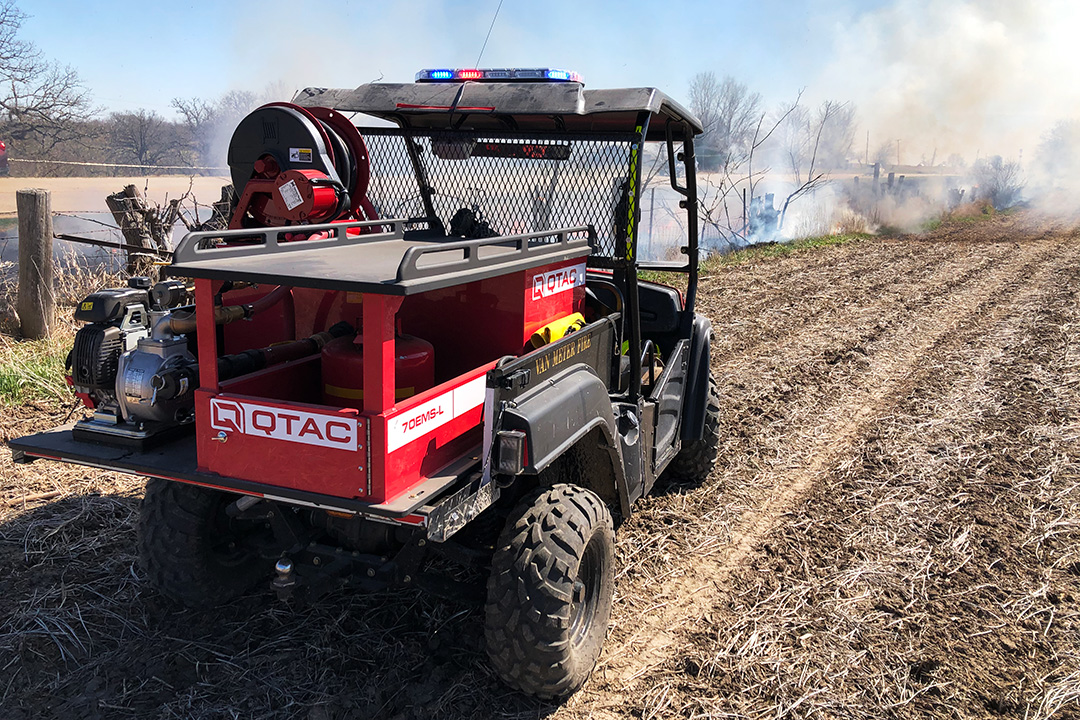

The QTAC™ 70EMS-L is a UTV EMS rescue and firefighting skid with a built-in storage compartment and rescue litter platform. Built entirely using PolyTough™ construction and copolymer polypropylene, the EMS-L is light weight and versatile.

The EMS-L features a 70-gallon, welded-copolymer tank, but can be restricted down to 50 gallons if you desire less water for your UTV. The base package comes with a medium pressure pump mated to a 2.1-horsepower Honda GHX50 engine, 75-feet of 3/4″ hose and, like all of the QTAC products, the ability to draft out of an auxiliary water source like a pool or creek. A high-pressure Waterax Versax 6 and around-the-pump foam are available as options.

A 1-inch-thick copolymer polypropylene deck is mounted to the top of the tank, complete with rails for securing the basket. The QTAC EMS-L is the skid to have if you need firefighting, EMS and storage capabilities in one compact, lightweight and powerful system.

Advantage
  • Fixed rescue litter platform
  • Storage area
  • Two available pump sizes
  • Flooded suction design
  • Hannay hose reel comes as standard equipment
Optional Equipment
  • Draft Hose Kit
  • Forklift Runners
  • Hannay Electric Hose Reel
  • Hose Reel Line up to 100 feet of 3/4″
  • Nozzle Upgrades
  • Scotty Around-the-Pump Foam Eductor
  • Tank Capacity Restrictor
  • 1-1/2″ NST Discharge
  • 2″ NST Threaded Suction
Specifications

QTAC 70EMS-L

Engine
HIGH PRESSURE ENGINE & PUMP
  • Model: Honda GX200 Series, 4-stroke horizontal shaft, OHV, air cooled gasoline
  • Maximum Power: 5.5 hp (4.1 KW) @ 3,600 RPM
  • Maximum Torque: 9.1 lb-ft (12.4 Nm) @ 2,500 RPM
  • Starting System: Manual, Recoil
  • Pump Type: Waterax Versax 6 Self-Priming 2-Stage Centrifugal
  • Intake: 2″ Male NPT
  • Discharge: 1-1/2″, 1″, 1″ Male NPT, 2″ Male BSP

MEDIUM PRESSURE ENGINE & PUMP
  • Model: Honda GXH50 Series, 4-stroke OHV, air cooled gasoline
  • Maximum Power: 2.1 HP (1.6 kW) @ 7,000 rpm
  • Maximum Torque: 2.0 lb-ft (2.7 Nm) @ 4,500 rpm
  • Starting System: Manual, Recoil
  • Pump Type: Koshin SEH-40H Single Stage Pump
  • Intake: 1-1/2″ Male NPT
  • Discharge: 1-1/2″, 1″, 1″ Male NPT, 2″ Male BSP
Pump
Tank
  • Type: MTECH PolyTough™ welded copolymer, internally baffled
  • Capacity: 70 U.S. Gallons
  • Fill Well: 4″ vented fill tower
  • Drain: 1-1/2″ plunger style
  • Features: Grab rails, water level sight tube, mounting flanges
  • Rescue Platform: Welded copolymer with rails for securing patient litter
WEIGHTS
  • Dry weight, Koshin SEH-40H and manual hose reel: 346 lbs.
  • Wet weight, Koshin SEH-40H and manual hose reel: 930 lbs.
  • Dry weight, Waterax Versax 6 and manual hose reel: 376 lbs.
  • Wet weight, Waterax Versax 6 and manual hose reel: 960 lbs.

Additional weight per component:
  • Electric hose reel: 30 lbs.
  • Around-the-Pump Foam



2.5-gallon

  • Dry Weight: 7 lbs.
  • Wet Weight: 28 lbs.



5-gallon

  • Dry Weight: 11 lbs.
  • Wet Weight: 53 lbs.

*All weights are approximate

Weight
QTAC 70EMS-L
PumP

Pump Options

Compare this pump curve to any other small wildland firefighting pump on the market
