Professional Grade Skid

TSUNAMI
PRO™

When you’re looking for high performance and versatility, look no further than the QTAC™ Tsunami Pro series of truck skids. Available with a wide range of WATERAX pumps, featuring welded stainless steel manifolds, and an indestructible PolyTough® body.

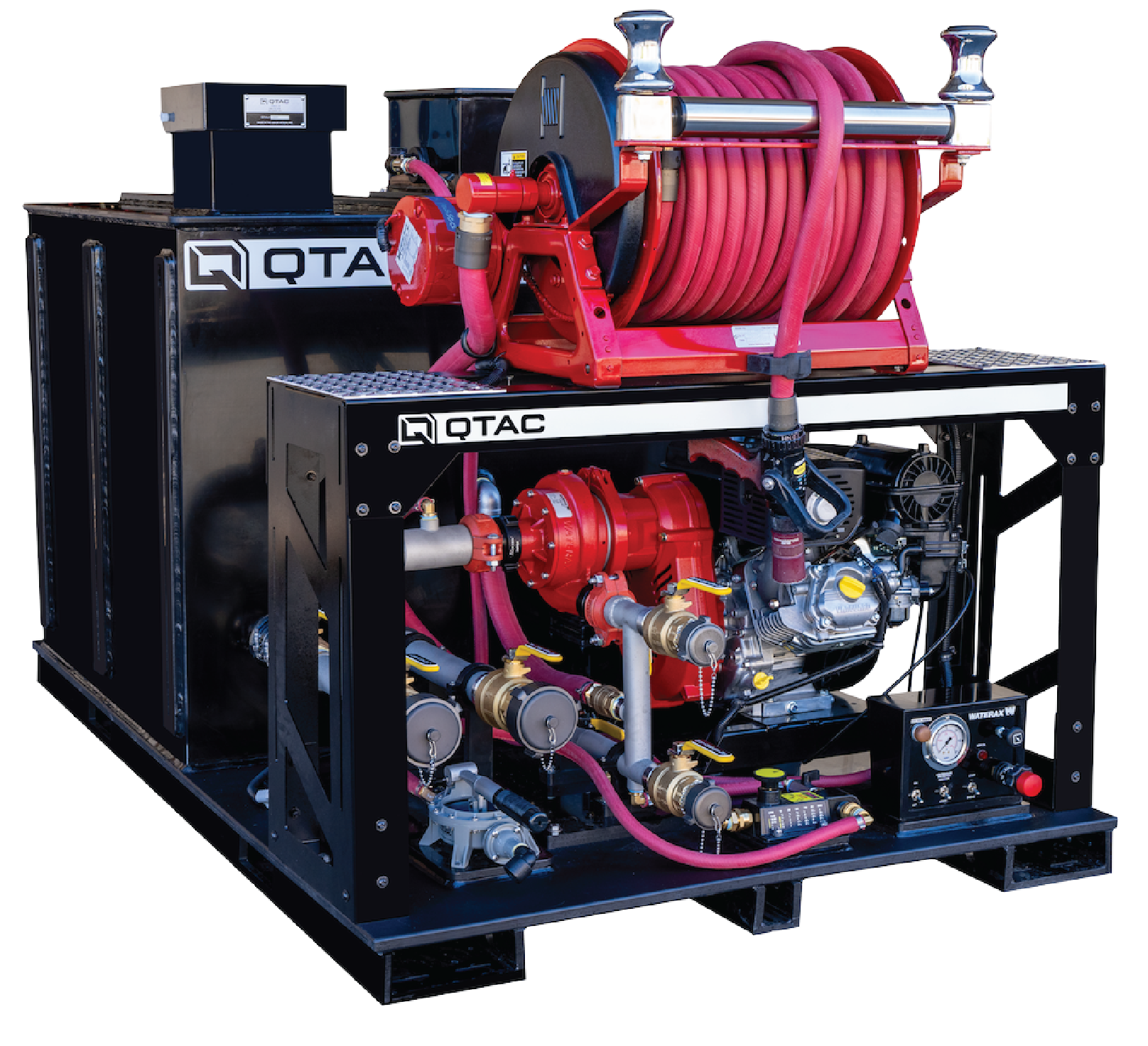

QTAC Tsunami Pro skid unit, showing the water tank, WATERAX pump, control panel and top-mounted hose reel
Capacity
150-400 GAL
Max Pressure
150-440 PSI
Max Flow
104-112 GPM
Tank Warranty
LTD LIFETIME

PolyTough® Tank Construction

We've been building polymer fire truck tanks for nearly two decades, and they don't fail. Tsunami skid tanks and storage boxes are CNC-cut and extrusion welded for extreme strength and durability. All tanks are baffled as per NFPA guidelines.

  • CNC-Cut & Extrusion Welded
  • NFPA Compliant Baffling
  • Lifetime Warranty

Welded Stainless Manifolds

Every Tsunami Pro truck skid comes standard with a TIG-welded stainless steel manifold and Victaulic connections at key points. This makes the entire skid easy to maintain, and component replacement is effortless should damage occur in the field.

  • TIG-Welded Stainless Steel
  • Victaulic Connections
  • Field-Serviceable Design

WATERAX Pump Performance

Choose from four distinct WATERAX powerplants designed to meet your exact suppression needs, ranging from 9HP general suppression units to ultra-high-pressure 18HP Vanguard configurations capable of 440 PSI.

  • Multiple Engine Configurations
  • 150 to 440 PSI Options
  • Heavy Duty Duty-Cycles

Meticulous Build Quality

Whether we're building a UTV skid, a truck system, or a complete fire truck, the QTAC attention to detail is second-to-none. This means you get a high-quality, reliable product that will perform flawlessly for years to come.

  • American Engineered
  • Rigorous QA Testing
  • Built for the WUI

PUMP OPTIONS

Select from our high-performance WATERAX pump loadouts. Choose "View Full Specs" to compare configurations, then build your Tsunami with the one that fits.

WATERAX VS2-9EV

  • Engine9HP Honda GX270
  • Max Pressure150 PSI
  • Max Flow105 GPM

WATERAX STR2-14V

  • Engine14HP Vanguard
  • Max Pressure230 PSI
  • Max Flow105 GPM

WATERAX STR4-DY10H

  • Engine9.3HP Yanmar Diesel
  • Max Pressure310 PSI
  • Max Flow112 GPM

WATERAX BB-4-18V

  • Engine18HP Vanguard
  • Max Pressure440 PSI
  • Max Flow104 GPM

BUILD YOUR TSUNAMI

Pick your tank, pump and options. Send your build for exact pricing and get its engineering spec sheet instantly.
Tank & Bed
StandardPolyTough® construction material with 1/2" tank walls
WATERAX Pump
StandardWelded stainless steel manifold with stainless steel or brass valves · Waterax control panel · Battery box (includes battery)
Hose
StandardElectric Hannay hose reel · Top-mounted hose reel with rollers
Length
Inner Diameter
Upgrades ADDED COST
Optional. Check any you'd like quoted.

SEE IT IN ACTION

SPECS & OPTIONS

A breakdown of the Tsunami Pro standard loadout and available equipment upgrades.

STANDARD PACKAGE INCLUDES

  • PolyTough® construction material with 1/2" tank walls
  • Welded stainless steel manifold with stainless steel or brass valves
  • 2-1/2" NST Draft Suction
  • 2-1/2" NST Direct Fill
  • 1-1/2" NST Auxiliary Discharge
  • 1" NPSH Auxiliary Discharge
  • 1" Tank fill / Recirc
  • 1" gated pump-to-discharge
  • Primers include: Guzzler, Electric
  • Electric Hannay hose reel
  • Waterax control panel
  • Battery box (includes battery)
  • Top-mounted hose reel with rollers

OPTIONAL EQUIPMENT

  • Bridge-Mounted Hose ReelRe-positions the Hannay electric reel from the top-mount to a heavy-duty bridge mount to free up bed space.
  • Foam System5 or 10-gallon PolyTough® foam tank integrated with a Scotty 4171 foam proportioner.
  • PolyTough® Side BoxesSide-mounted storage boxes to maximize gear organization securely on the skid.
  • Hose TrayDedicated tray for storing and rapidly deploying dead-lay hose alongside the reel.
