Professional Grade Skid

Tsunami Pro

When you’re looking for high performance and versatility, look no further than the QTAC™ Tsunami Pro series of truck skids. Available with a wide range of WATERAX pumps, the QTAC Tsunami Pro series of skids feature welded stainless steel manifolds, a wide range of pumps offering 150-440 PSI, and optional equipment like foam and side storage boxes.

Configure Your Tsunami

The Advantage
Pump Options
Dimensions
Specs & Options

PolyTough™ Tank Construction

We've been building polymer fire truck tanks for nearly two decades, and they don't fail. Tsunami skid tanks and storage boxes are CNC-cut and extrusion welded for strength and durability. All tanks are baffled as per NFPA guidelines. Don't settle for anything less.

Welded Stainless Manifolds

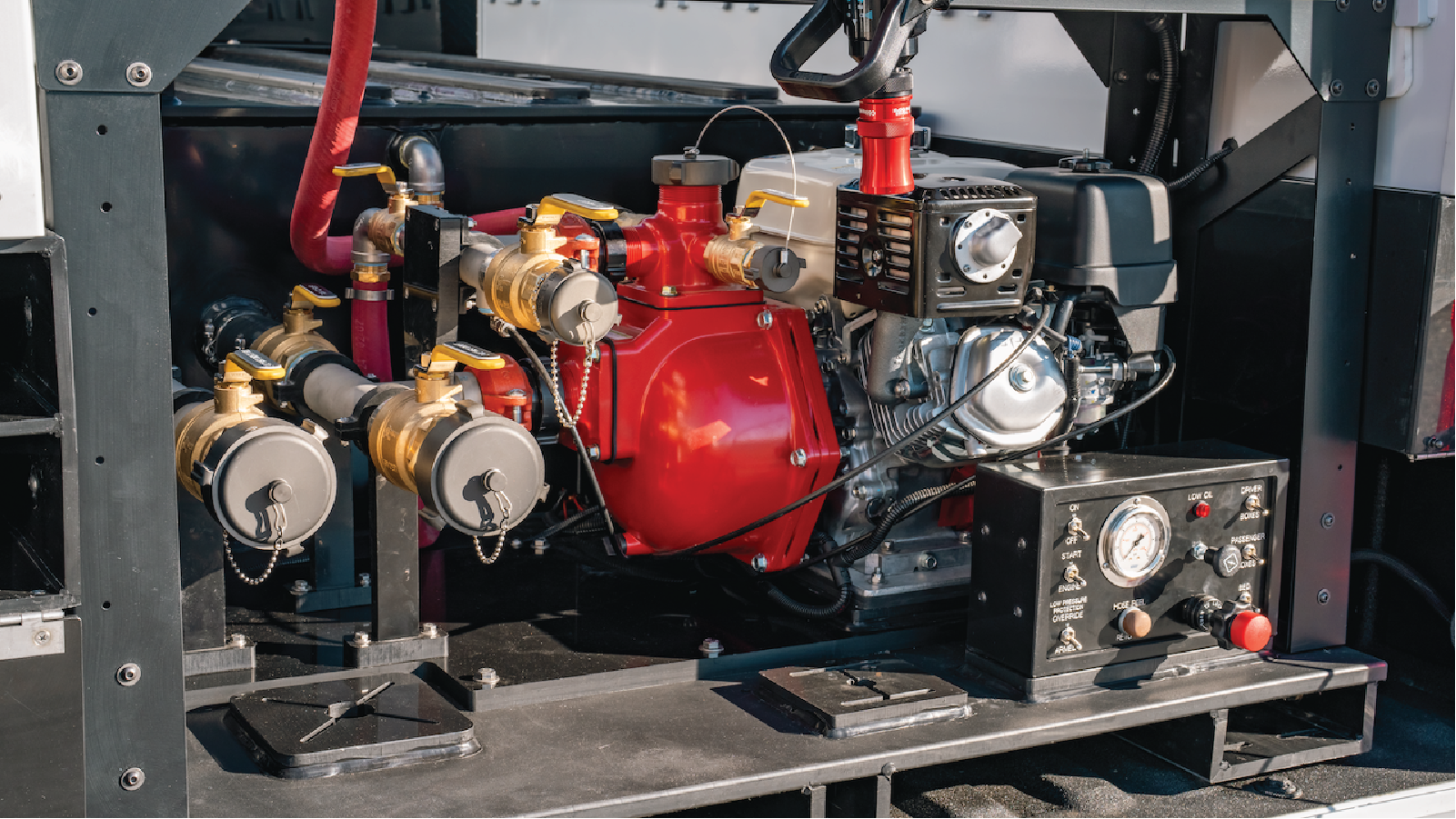

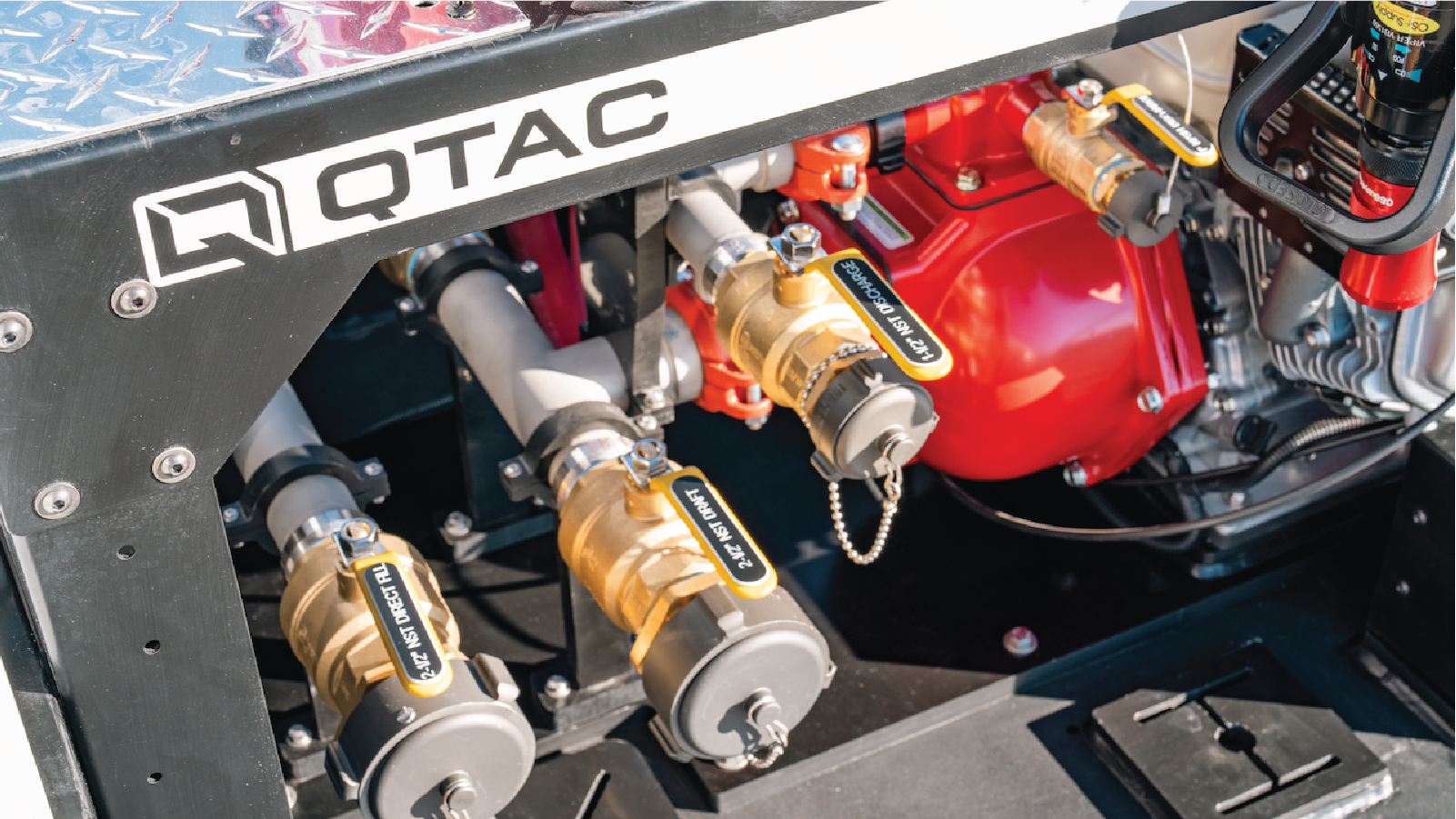

Every Tsunami Pro truck skid comes standard with a TIG-welded stainless steel manifold and Victaulic connections at key points. This makes the entire skid easy to maintain, and component replacement is easy should damage occur.

Meticulous Build Quality

Whether we're building a UTV skid, truck system, or complete fire truck, the QTAC attention to detail is second-to-none. This means you get a high-quality, high-performing product that will last for years to come.

Pump Options

WATERAX VS2-9EV

General Suppression

Engine 9HP Honda GX270[cite: 3]

Max Pressure 150 PSI[cite: 3]

Max Flow 105 GPM[cite: 3]

Hose Rating 300 PSI[cite: 3]

View Pump Specs ➔

WATERAX STR2-14V

Rapid Response

Engine 14HP Vanguard[cite: 2]

Max Pressure 230 PSI[cite: 2]

Max Flow 105 GPM[cite: 2]

Hose Rating 300 PSI[cite: 2]

View Pump Specs ➔

WATERAX STR4-DY10H

Heavy Diesel Reliability

Engine 9.3HP Yanmar Diesel[cite: 1]

Max Pressure 310 PSI[cite: 1]

Max Flow 112 GPM[cite: 1]

Hose Rating 800 PSI[cite: 1]

View Pump Specs ➔

WATERAX BB-4-18V

Ultra High-Pressure

Engine 18HP Vanguard[cite: 4]

Max Pressure 440 PSI[cite: 4]

Max Flow 104 GPM[cite: 4]

Hose Rating 800 PSI[cite: 4]

View Pump Specs ➔

Dimensions

150 Gal - Short Bed

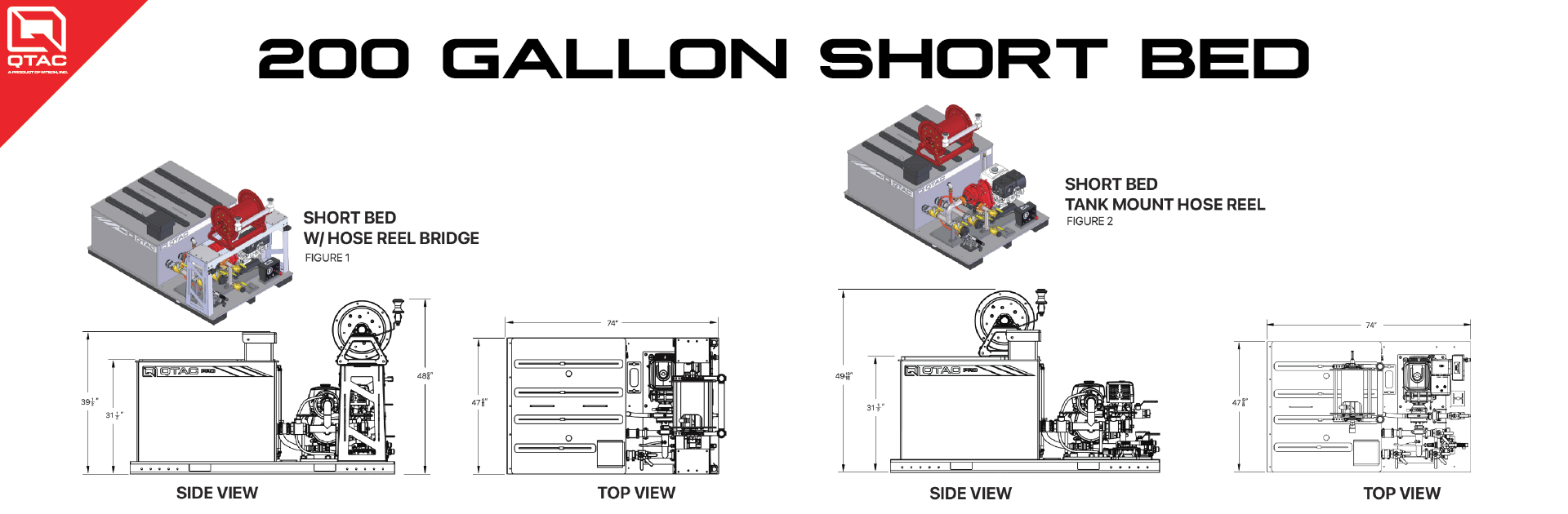

200 Gal - Short Bed

250 Gal - Short Bed

200 Gal - Long Bed

250 Gal - Long Bed

300 Gal - Long Bed

350 Gal - Long Bed

400 Gal - Long Bed

Click to Enlarge

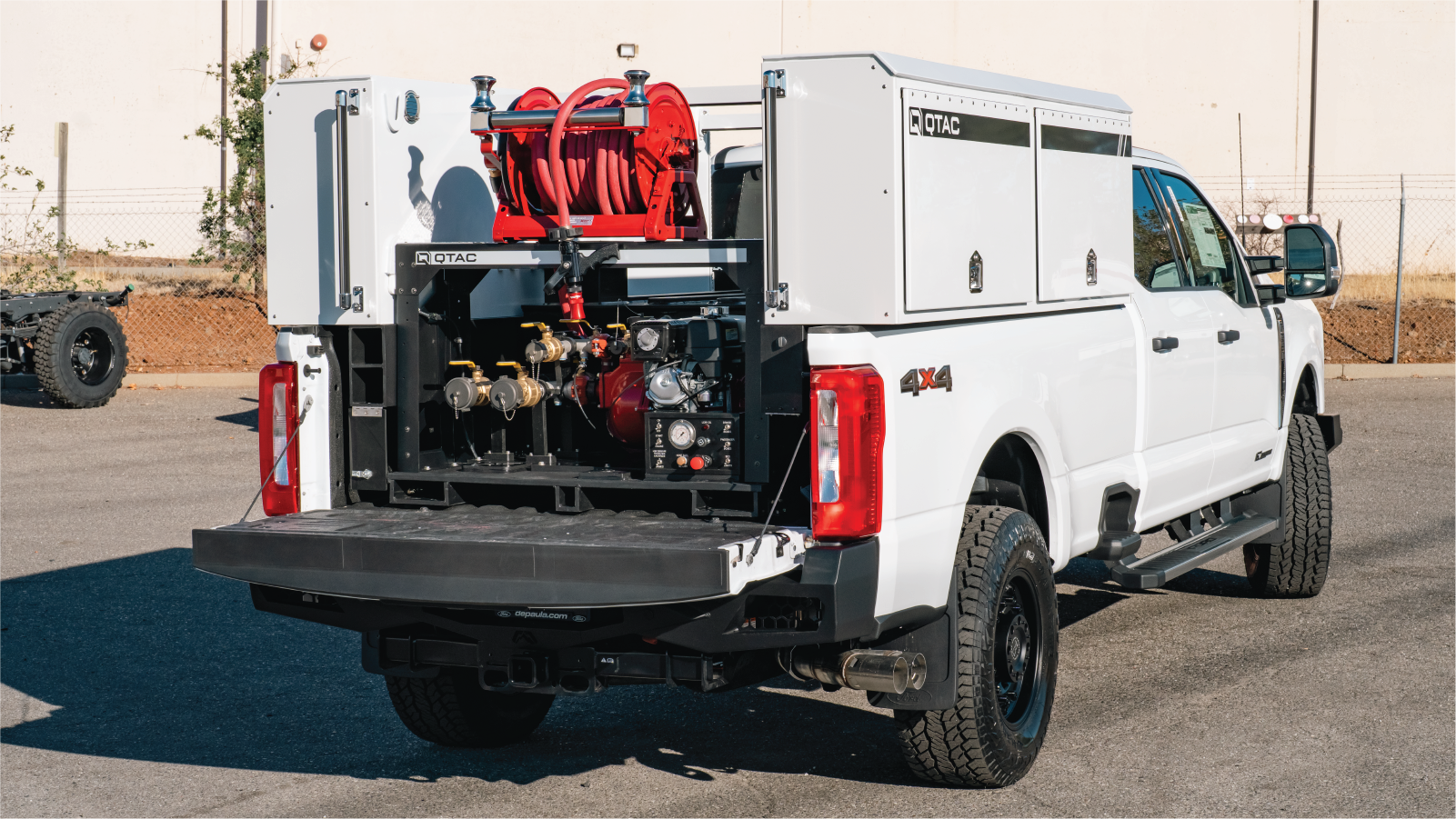

See the Finished Product

Tsunami Pro

Standard Package Includes

Capacities ranging from 150 to 400 gallons, depending on length of bed
Long and short bed versions (short beds are designed for 6'6" and long beds are designed for 8' beds)
PolyTough™ construction material with 1/2"-thick tank walls[cite: 1, 2, 3, 4]
Welded stainless steel manifold with brass valves[cite: 1, 2, 3, 4]
Victaulic manifold connections for ease-of-maintenance
Electric Hannay hose reel[cite: 1, 2, 3, 4]
Primers include: Guzzler, Electric[cite: 1, 2, 4]
Forklift pockets
Control panel
Battery box (includes battery)
Top-mounted hose reel with rollers (Bridge Mount available as an option)

Optional Equipment

Bridge-Mounted Hose Reel: Re-positions the Hannay electric reel from the top-mount to a heavy-duty bridge mount.

Foam System: 5 or 10-gallon PolyTough™ foam tank integrated with a Scotty 4171 foam proportioner.[cite: 1, 2, 3, 4]

Custom Storage: PolyTough™ side boxes available to maximize gear organization.

Enhance your Tsunami Pro Skid with optional equipment designed to meet your specific needs. Each item is available separately and will be added to your final quoted build.
