Advanced Search and Rescue Apparatus

SUPER SAR™

A robust Search and Rescue apparatus engineered for the rigorous demands of wildland terrains. Available in M1, M2, M3, M4, and M5 configurations, featuring a Super Single conversion kit, Warn 16.5K Winch, and multiple custom body storage configurations.

Secure Your Build See It In Action

19,500

LBS GVWR Rating

60/84"

CAB-TO-AXLE

16.5K

WINCH PULL

3.5"

SUSPENSION LIFT

41"

ALL-TERRAIN TIRES

MODELS

MODEL CONFIGURATIONS

Compare the structural layouts of the M1, M2, M3, M4, and M5 models. Click "View Full Specs" to open the detail panel and evaluate the features.

SUPER SAR™ M1

Body LayoutSSAR-Standard
Primary FocusRapid Deployment & General Rescue
Cab-To-Axle (C/A)60 Inches

SUPER SAR™ M2

Body LayoutSSAR-Standard w/ Transverse
Primary FocusForward Gear & Slide-Out Access
Cab-To-Axle (C/A)60 Inches

SUPER SAR™ M3

Body LayoutSSAR - Extra Height
Primary FocusMaximized Vertical Storage Capacity
Cab-To-Axle (C/A)60 Inches

SUPER SAR™ M4

Body LayoutSSAR-Extra Length
Primary FocusMaximum Payload & Equipment Length
Cab-To-Axle (C/A)84 Inches

SUPER SAR™ M5

Body LayoutSSAR-Walk In
Primary FocusWeather-Resistant Enclosed Crew Staging
Cab-To-Axle (C/A)60 Inches

TECHNICAL SPECS

A comprehensive side-by-side breakdown of all standard apparatus loadouts and available equipment upgrades.

ALL STANDARD ITEMS

Chassis & Exterior

Ford F-550 (60" or 84" c/a), XL Trim, Super Crew, 19,500 GVWR
3.5" Suspension Lift
Buckstop 8K PRO HD Wheels, 20"x11"
Petlas RM910 Tires, 335/80R20 (41")
QTAC Mud Flaps & Aftermarket Black Front Fender Flares
Spring Mounted Steel Body Subframe
Factory Running Boards
Body Paint Matched to Chassis (Single Color)
3M Reflective Chevron Striping (Flo-Yellow + Red)

Bumpers & Hardware

Steel Standard Depth Front Bumper w/ Winch Mount
Warn 16.5ti Winch w/ Remote and BT Module
ARB Onboard Air Compressor
Steel Rear Bumper w/ Treadplate Cap
Pull Out Rear Steps Below Bumper

Body & Compartments

SSAR Body Styles: Standard, w/ Transverse, Extra Height, Extra Length, or Walk In
Top Box Configuration A
ROM Roll Up Compartment Doors (Sides & Rear)
Fuel Storage in L3 Compartment
Passive Ventilation in Compartments
Single Rear Pull Out Tray (M1, M2, M3, M4)
Front Transverse Compartment & Dual-Direction Tray (M2)

Electrical, Cab & Lighting

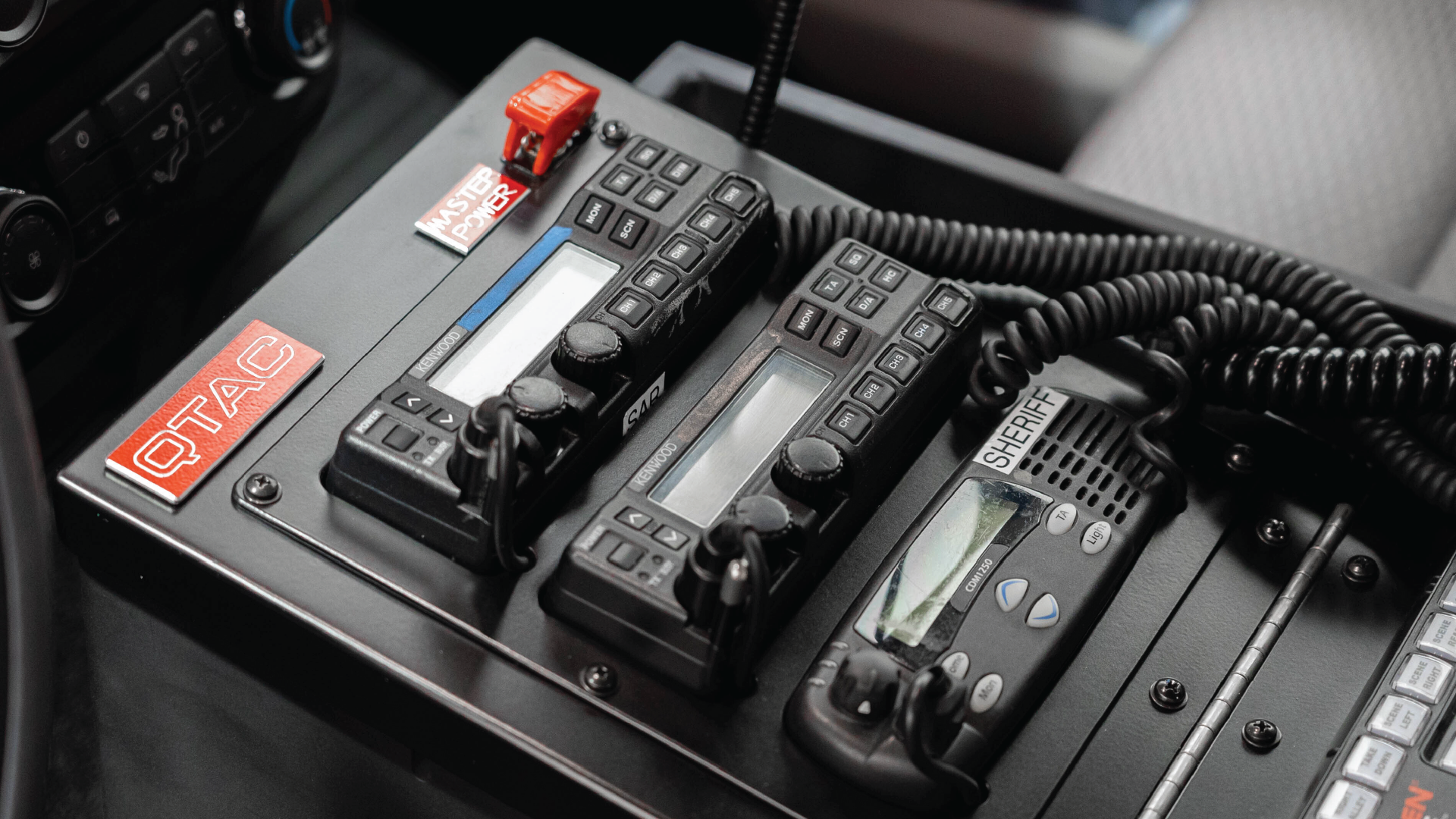

QTAC Model 1 Console & Factory Backup Camera
Under Rear Seat Electrical Box (Ford Only)
2000W Xantrex Charger/Inverter & Power Tamer
Power Outlets, One duplex (L2/R2)
Whelen WeCore Siren and Controller

ALL OPTIONAL ITEMS

Chassis & Protection Upgrades

SDI E-Clik Adjustable Damping System
Off-Road Belly Pan Skid Plate
Aftermarket HD Steering Damper
AMP Research Retractable Running Boards
Tubular Nerf Bars with Steps
Front Skid Plate (Ford Only)

Bumper & Exterior Upgrades

Front Bumper Off-Road Light Bar
Rear Trailer Hitch - Curt Class 5, 2" w/ 5/8" Pin
Rear Attach Points Bolted to Frame Rails
Red, White, Custom Truck Colors

Body & Compartment Accessories

Tie Down Points on Outside/Inside Walls of Top Boxes
Single Color Painted Roll Up Doors (All)
Additional Shelving for L1/R1, L2/R2, L3/R3
SCBA Storage in L2 (Rack for 2 Packs + 2 45-Min Spare Bottles)
Pac Tool Mount Board in R2 Compartment
Aluminum Tool Board in L2/R2 Compartments
Active Ventilation in Compartments
Pull Out Tray in R3 Compartment

Electrical, Lighting & Cab Upgrades

Additional Power Outlets, One duplex (L1/R1 and R3)
RVS 4 Camera System or RVS 2 Camera System
Lighting Package 1, 2, or 3
Fender Mounted Spotlights
Diode Dynamics Off-Road Light Bar (Upper Zone A)
Liberty II Light Bar Protection
Additional 100Ah Auxiliary Battery

APPARATUS OVERVIEW

Discover why departments trust the SUPER SAR™ for rapid response, extreme off-road maneuverability, and reliable rescue deployments.

Enhanced Mobility

Master wildland terrains with the Buckstop Super Single Wheel Conversion, 3.5" lift, and Petlas 41" tires.

Heavy Recovery

Outfitted with a front-mounted Warn 16.5ti Winch, ARB Onboard Air Compressor, and available rear trailering capabilities.

Robust Storage

Multiple body lengths and walk-in options providing dedicated SCBA space, dual-direction trays, and Pac Tool layouts.

Premium Hardware

Built with ROM Roll-up doors, Whelen WeCore sirens, 2000W Xantrex inverters, and heavy-duty steel subframes.

APPARATUS IN ACTION

Watch the SUPER SAR™ perform in rigorous field operations.

DOWNLOADABLE ASSETS

Spec sheets and reference documents for the SUPER SAR™ lineup.

PDF Download SUPER SAR™ Quick Spec Sheet (2026)

SUPER SAR™

Model Description

Core Specifications

Body Style

Cab To Axle60"

Key FeatureRescue

Chassis & Layout

Standard Equipment Highlights

Feature	M1	M2	M3	M4	M5
Body Style	Standard	Transverse	Extra Height	Extra Length	Walk In
Chassis C/A	60"	60"	60"	84"	60"
Primary Focus	General Rescue	Side Access	Vertical Storage	Max Payload	Enclosed Crew
Forward Transverse	—	Standard	—	—	—
Walk-In Area	—	—	—	—	Standard
Suspension	3.5" Lift	3.5" Lift	3.5" Lift	3.5" Lift	3.5" Lift
Winch System	16.5ti	16.5ti	16.5ti	16.5ti	16.5ti
