Type 6 Wildland Urban Interface

SUPER 6™

A robust Type 6 firefighting apparatus engineered for the rigorous demands of the WUI. Featuring a Super Single conversion kit, high-flow diesel pump, and an indestructible PolyTough™ body.

Secure Your Build See It In Action

19,500

LBS GVWR Rating

300

Gallon Capacity

310

GPM Max Flow

180

PSI Max Pressure

LIFETIME

Body Warranty

TYPE 6

WUI Compliant

Enhanced Mobility

Master rugged WUI terrains with the Buckstop Single Wheel Conversion Kit. Eliminates the risk of dual-rear-wheel rock trapping while significantly improving approach and departure angles.

Buckstop Conversion Kit
3" Suspension Lift
Continental 335/80/20 Tires

Indestructible Body

Built with lightweight, corrosion-proof PolyTough™ construction. Features a transverse pass-through compartment, 6 fully adjustable equipment compartments, and a 300-gallon integrated tank.

Transverse Compartment
6 Adjustable Storage Bays
Integrated 300G PolyTough Tank

Diesel Powerhouse

Outfitted with the WATERAX B2X-D902 Diesel Pump driven by a 24.8HP Kubota engine. This system delivers massive output, handling dual attack lines and remote water transfer with ease.

WATERAX B2X-D902 Pump
24.8HP Kubota Engine
310 GPM & 180 PSI Rating

Premium Hardware

A TIG-welded stainless steel manifold with Victaulic connections guarantees easy maintenance. Supported by a Whelen Liberty 2 Duo lighting package and custom aluminum rear bumpers.

TIG-Welded Steel Manifold
Whelen Liberty 2 Duo Lighting
Custom Aluminum Bumper

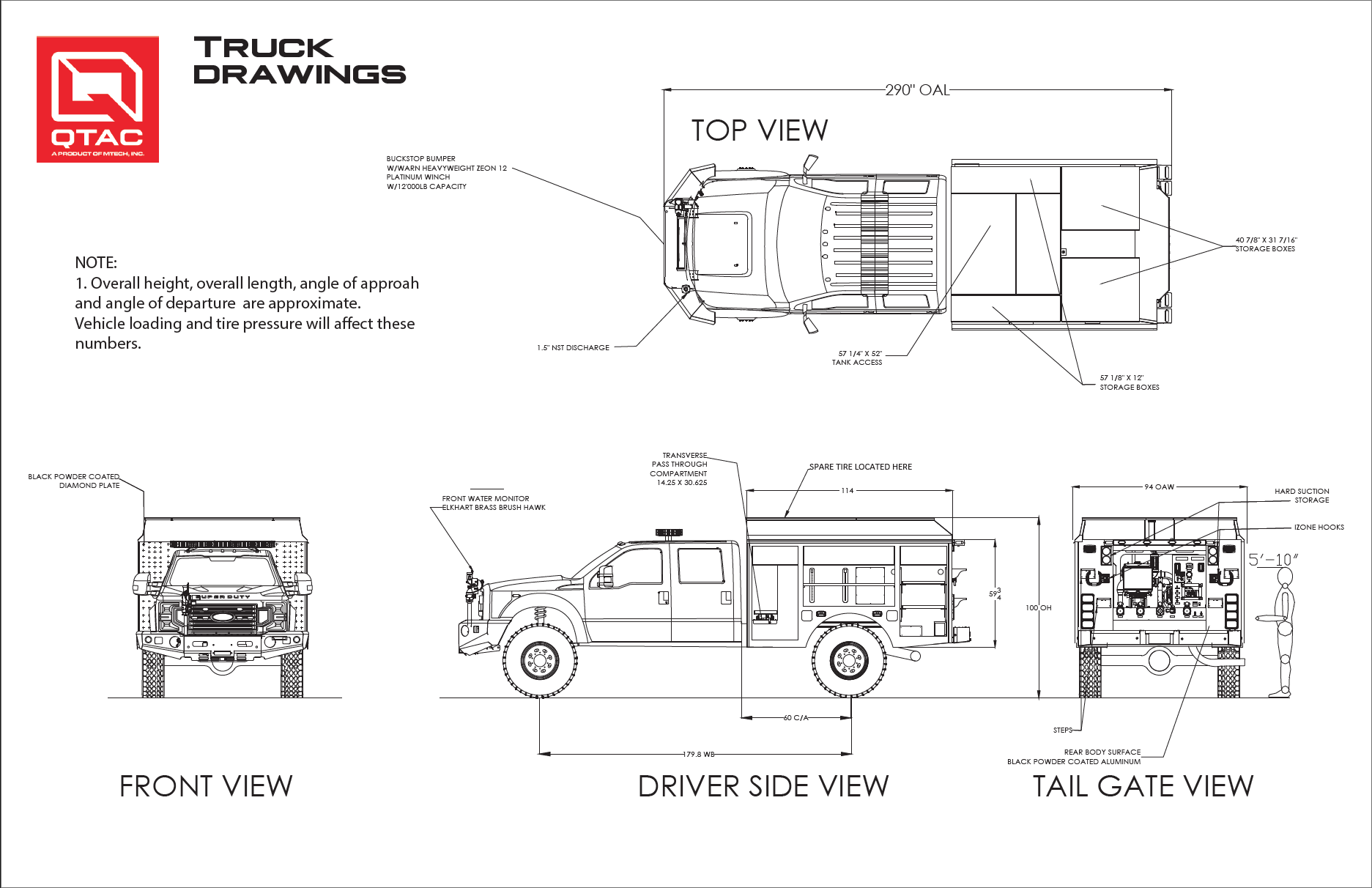

Technical Architecture

A comprehensive breakdown of the SUPER 6™ standard build configuration. Click any item to expand for detailed component information.

Body & Chassis

Platform OptionsFord F550 or Ram 5500 Chassis
+

Engineered for extreme duty cycles and heavy payload support in off-road environments. Includes the Buckstop Super Single conversion framework.
Body ConstructionPolyTough™ Copolymer
+

Fully impervious to rust and corrosion, and immune to stress fractures, dents, or cracking over extreme terrain. Backed by a lifetime warranty.
Tank Capacity300 Gallon Integrated
+

Integrated directly into the PolyTough™ body, featuring advanced internal baffling to eliminate water slosh and maintain vehicle stability on severe inclines.
Hardware IntegritySpring-Mounted Subframe
+

Heavy-duty powdercoated spring-mounted subframe isolates the rigid body from chassis frame twist, extending apparatus lifespan significantly.

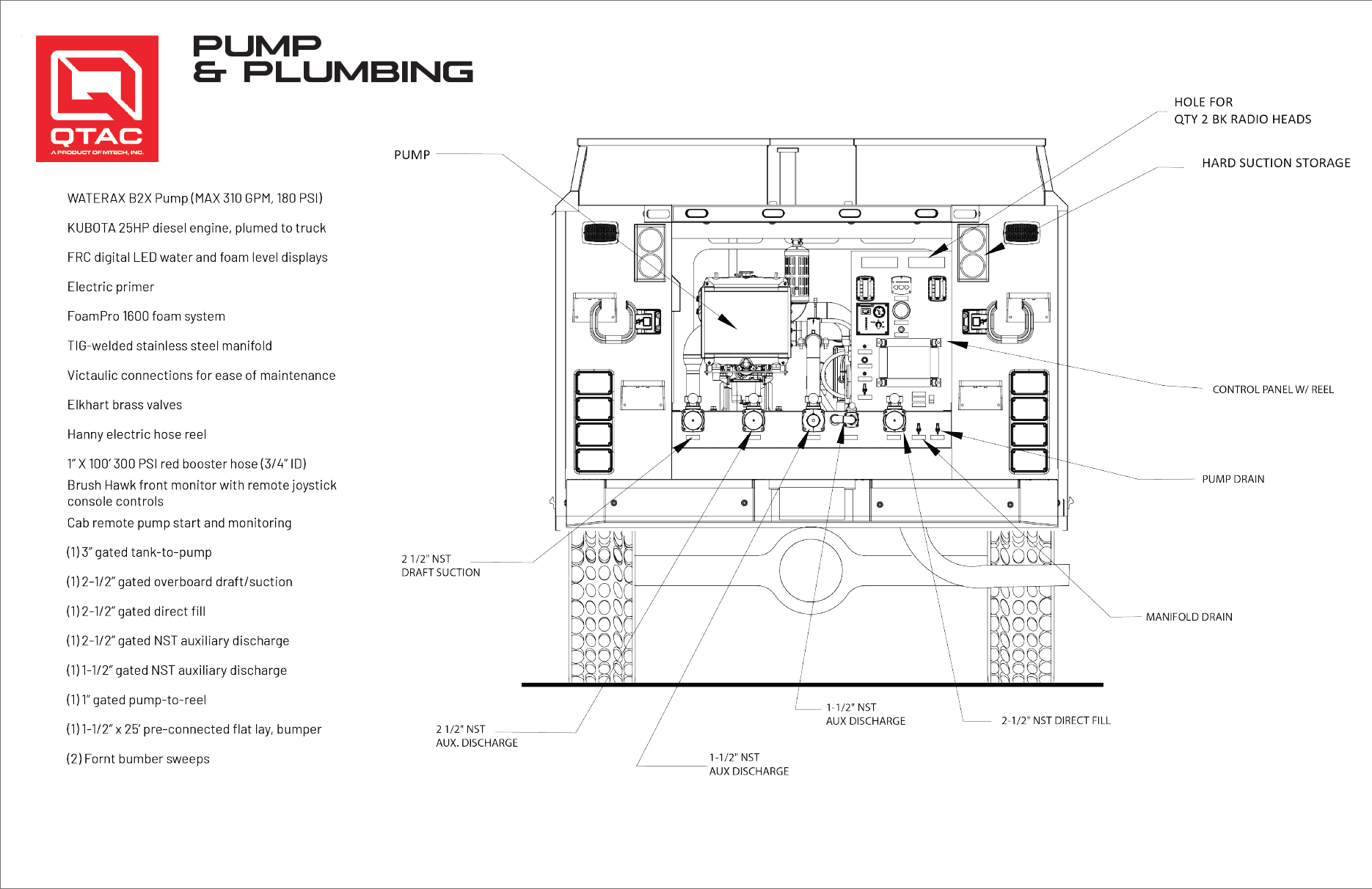

Pump & Plumbing

Power Plant24.8HP Kubota Diesel
+

3-Cylinder fuel injected liquid cooled D902-E4B system designed for uninterrupted high-RPM drafting and pumping operations.
Primary Pump EndWATERAX B2X-D902
+

Featuring a 3” FNPT Intake and 2-1/2” Discharge. Reliable high performance mid-range 2-stage pump end delivering 310 GPM.
Connections & DischargesTIG-Welded Manifold
+

Outfitted with heavy-duty Victaulic connections. Includes gated tank-to-pump, draft/suction, direct fill, and multiple auxiliary remote discharges.

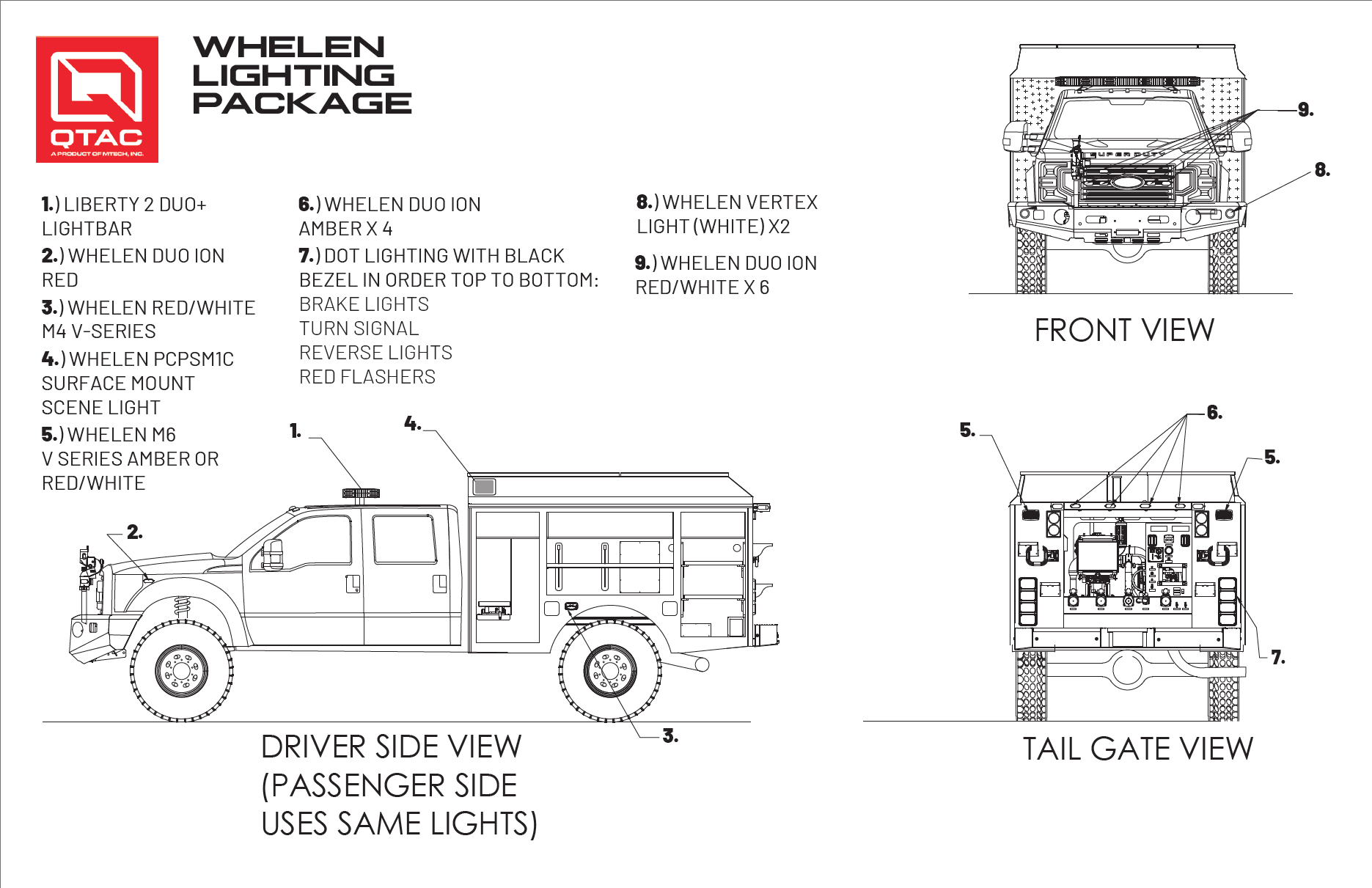

Electrical

Warning LightsWhelen Liberty 2 Duo
+

Full Liberty 2 Duo Lightbar combined with 6x Whelen Duo Ion Red/White perimeter flashes for unparalleled 360-degree scene visibility.
Scene LightingWhelen PCPSM1C Series
+

Surface Mount lighting strategically positioned to completely illuminate the operational pump panel and surrounding drop zones.
Controls & DisplaysCab Remote Start & FRC
+

Advanced cab remote pump start/stop functionality paired with FRC digital LED water and foam level visual displays inside the cabin.
