Compact Wildland Attack & Water Tender Apparatus

RANGE 6™

A compact, maneuverable wildland fire apparatus built on the Ford F-550 platform. Available in M1, M2, M3, and M4 configurations, featuring up to 400 gallons of water, an integrated FoamPro 1600 foam system, and a choice of three purpose-matched pump packages.

Secure Your BuildSee It In Action
19,500
LBS GVWR Rating
60"
CAB-TO-AXLE
400 GAL
MAX WATER CAPACITY
FOAMPRO 1600
FOAM SYSTEM
3
PUMP CONFIGURATIONS
4
MODELS

MODEL CONFIGURATIONS

Compare the structural layouts of the M1, M2, M3, and M4 models. Click "View Full Specs" to open the detail panel and evaluate the features.

IconRANGE 6™ M1

  • Body LayoutStandard 118" w/ Transverse
  • Primary FocusRapid Deployment & Forward Gear Access
  • Cab-To-Axle (C/A)60 Inches

IconRANGE 6™ M2

  • Body LayoutStandard 118"
  • Primary FocusMaximum Water & Foam Capacity
  • Cab-To-Axle (C/A)60 Inches

IconRANGE 6™ M3

  • Body LayoutSlam Door
  • Primary FocusFull-Access Compartment Storage
  • Cab-To-Axle (C/A)60 Inches

IconRANGE 6™ M4

  • Body LayoutSlam Door w/ Rear Tray
  • Primary FocusHeavy Equipment & Tool Deployment
  • Cab-To-Axle (C/A)60 Inches

TECHNICAL SPECS

A comprehensive side-by-side breakdown of all standard apparatus loadouts and available equipment upgrades across the RANGE 6™ M1–M4 lineup.

ALL STANDARD ITEMS

Chassis & Exterior

  • Ford F-550 60" C/A, XL Trim, Super Crew, 19,500 GVWR
  • Factory Suspension, Fenders & Running Boards
  • QTAC Mud Flaps & Spring Mounted Steel Body Subframe
  • Polished Accent Color & Black Wheel Well Liners
  • Body Paint Matched to Chassis (Single Color)
  • 3M Reflective Chevron Striping (Flo-Yellow + Red)

Bumpers & Hardware

  • Ford Factory Front Bumper
  • Steel Rear Bumper w/ Treadplate Cap
  • Rear Attach Points Bolted to Frame Rails

Body & Compartments

  • Range 6 Body: Standard 118" L (M1/M2) or Slam Door (M3/M4)
  • ROM Roll Up Compartment Doors (M1/M2) or Aluminum Slam Compartment Doors (M3/M4)
  • Rear ROM Roll Up Door
  • Fuel Storage in L3 Compartment
  • Plumbing & Electrical Access Panels
  • Passive Ventilation in Compartments
  • Standard Fire Truck Rear Pump Compartment (M4: Single Rear Pull Out Tray)

Electrical, Cab & Lighting

  • QTAC Model 1 Console & Factory Backup Camera
  • Under Rear Seat Electrical Box (Ford Only)
  • Power Tamer
  • Whelen WeCore Siren and Controller
  • Lighting Package 1 (Red/White)
  • Installation of up to Two (2) Customer-Supplied Radios

Tank & Pump System

  • 300–400 Gallon Water Tank w/ Integrated 10–20 Gallon Foam Tank (model dependent)
  • FoamPro 1600 Foam System (all models)
  • WATERAX B2X, 310 GPM Max, 180 PSI Max (M1/M2)
  • Waterous E-511C Pump (M3)
  • Hale CBP-37F PTO Pump (M4)

ALL OPTIONAL ITEMS

Chassis & Protection Upgrades

  • Aftermarket HD Steering Damper
  • AMP Research Retractable Running Boards
  • Tubular Nerf Bars with Steps

Bumper & Winch Upgrades

  • Steel Standard or Extended Depth Front Bumper w/ Winch Mount
  • Aftermarket Front Bumper Brush Guard
  • Front Bumper Sweeps, One Each Side
  • Front Bumper Off-Road Light Bar & Front Bumper Monitor
  • Front Bumper Discharge for 25' x 1.5" NST Flat Lay
  • Warn 16.5ti Winch w/ Remote & BT Module
  • ARB Onboard Air Compressor
  • Pull Out Rear Steps Below Bumper
  • Rear Trailer Hitch - Curt Class 5, 2" w/ 5/8" Pin

Body & Compartment Accessories

  • Single Color Painted Roll Up Doors (All)
  • Additional Shelving for L1/R1, L2/R2, L3/R3 Compartments
  • SCBA Storage in L2, Pac Tool Mount in R2, Aluminum Tool Boards (L2/R2)
  • Pull Out Tray in R3 Compartment
  • Zolatone Finish & Active Ventilation in Compartments
  • Tie Down Points (Outside/Inside Top Boxes & Top of Body)
  • Rear Hose Beds, Pre-Connects & iZone Hooks

Electrical, Lighting & Cab Upgrades

  • 2000W Xantrex Charger/Inverter
  • Additional Power Outlets (L2/R2 and L1/R1 + R3)
  • RVS 2 or RVS 4 Camera System
  • Lighting Package 2 (Blue/White) or Package 3 (Amber/White)
  • Flat Roof Mounted Scene Lights & Pole Lights, Front
  • Fender Mounted Spotlights
  • Diode Dynamics Off-Road Light Bar & Liberty II Light Bar Protection
  • QTAC Model 2 Console for Front Monitor Joystick

APPARATUS OVERVIEW

Discover why departments trust the RANGE 6™ for compact wildland attack, structure protection, and reliable water/foam delivery.

Compact Maneuverability

Built on the nimble Ford F-550 60" C/A platform, giving crews tight-access capability on assignments where larger engines can't go.

Integrated Foam Suppression

Every RANGE 6™ ships standard with a FoamPro 1600 foam proportioning system paired to an integrated foam cell for Class A foam capability.

Configurable Water Capacity

Choose between 300 and 400 gallon water tanks across the M1–M4 lineup to match your department's initial-attack and water-tender needs.

Purpose-Built Pump Options

Three distinct pump packages — WATERAX B2X, Waterous E-511C, and Hale CBP-37F PTO — are matched to each model's body configuration.

APPARATUS IN ACTION

Footage of the RANGE 6™ in the field is coming soon — check back for walkaround and deployment video.

►
Apparatus Walkaround Footage Coming Soon

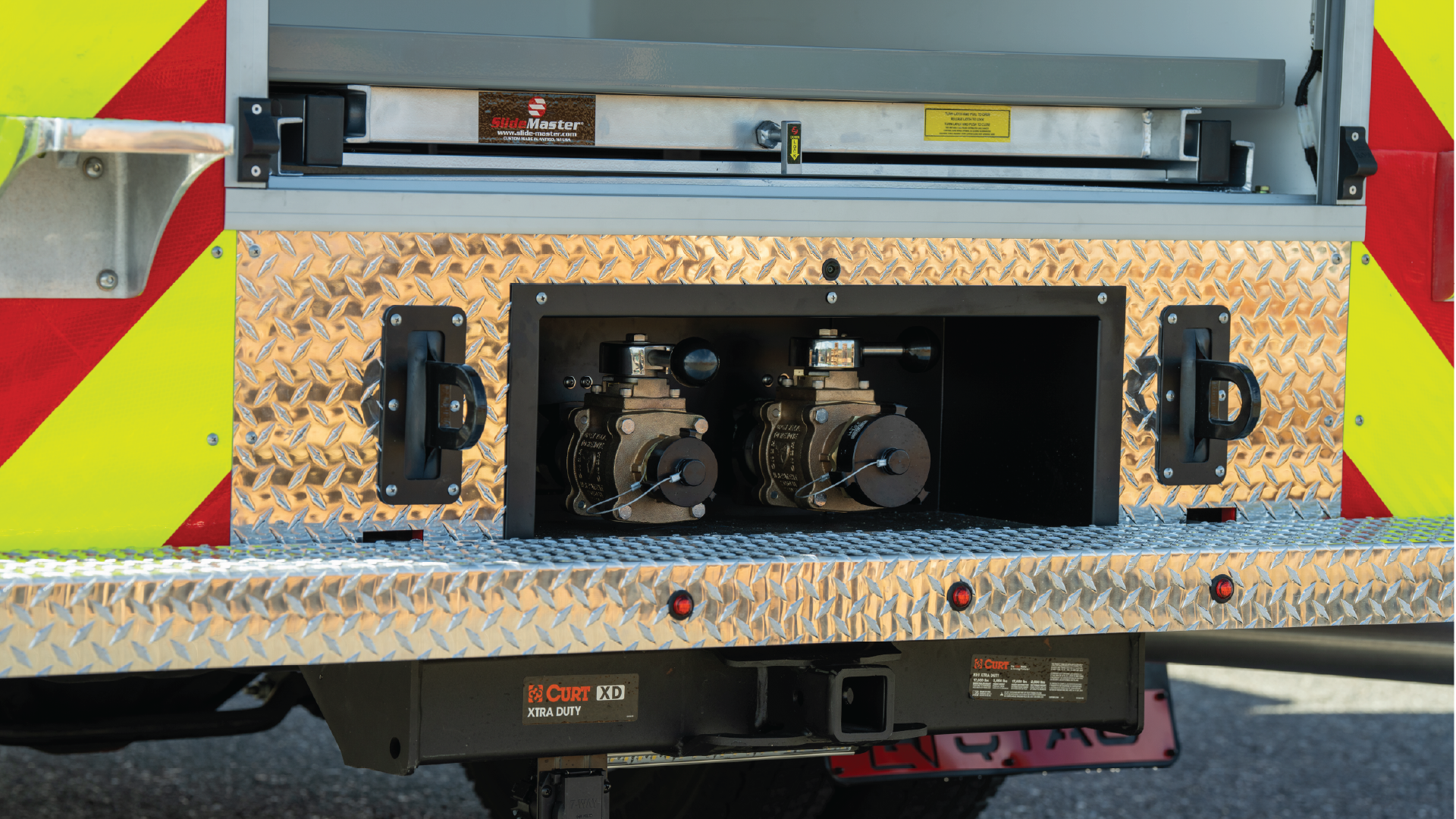

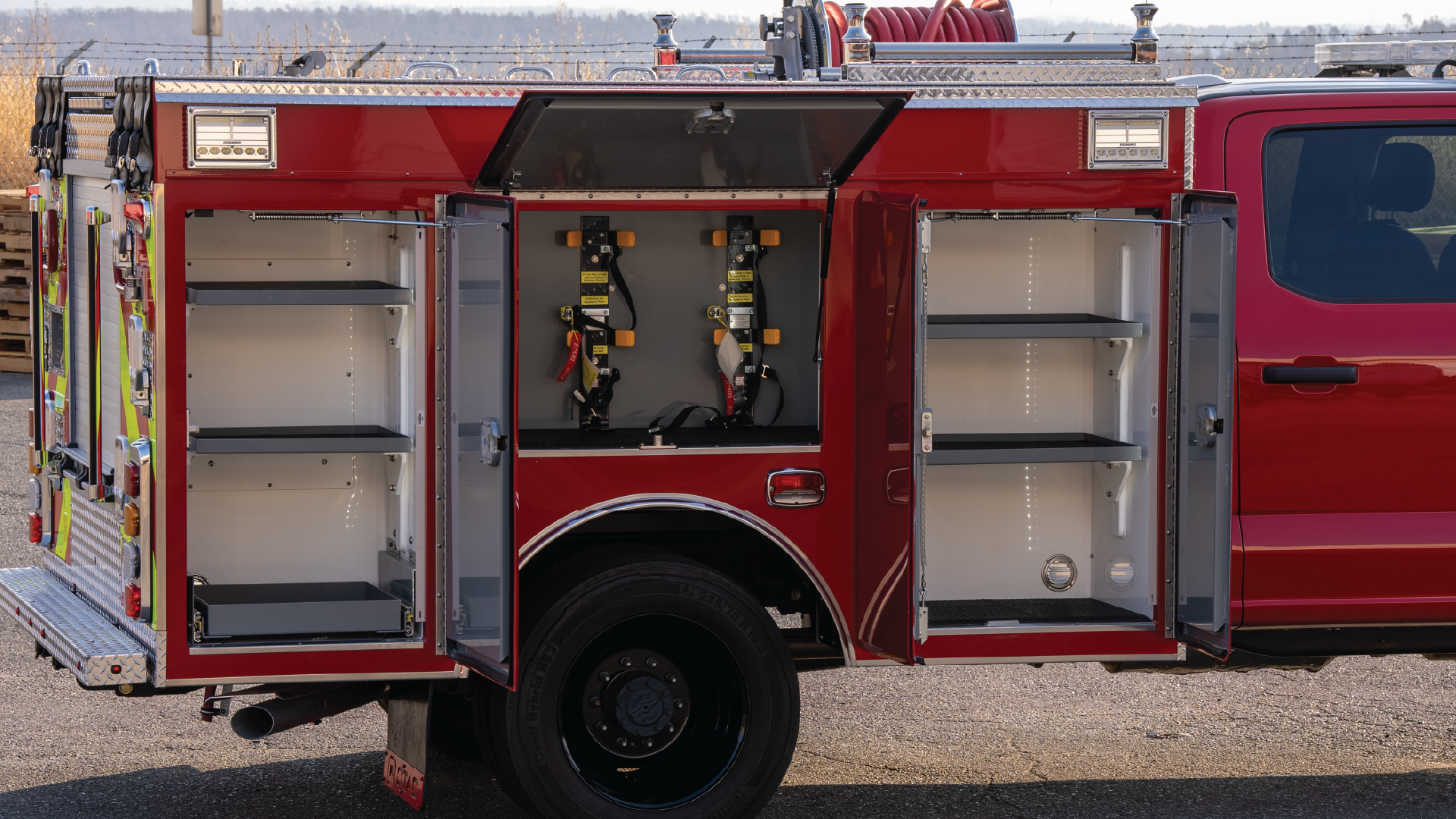

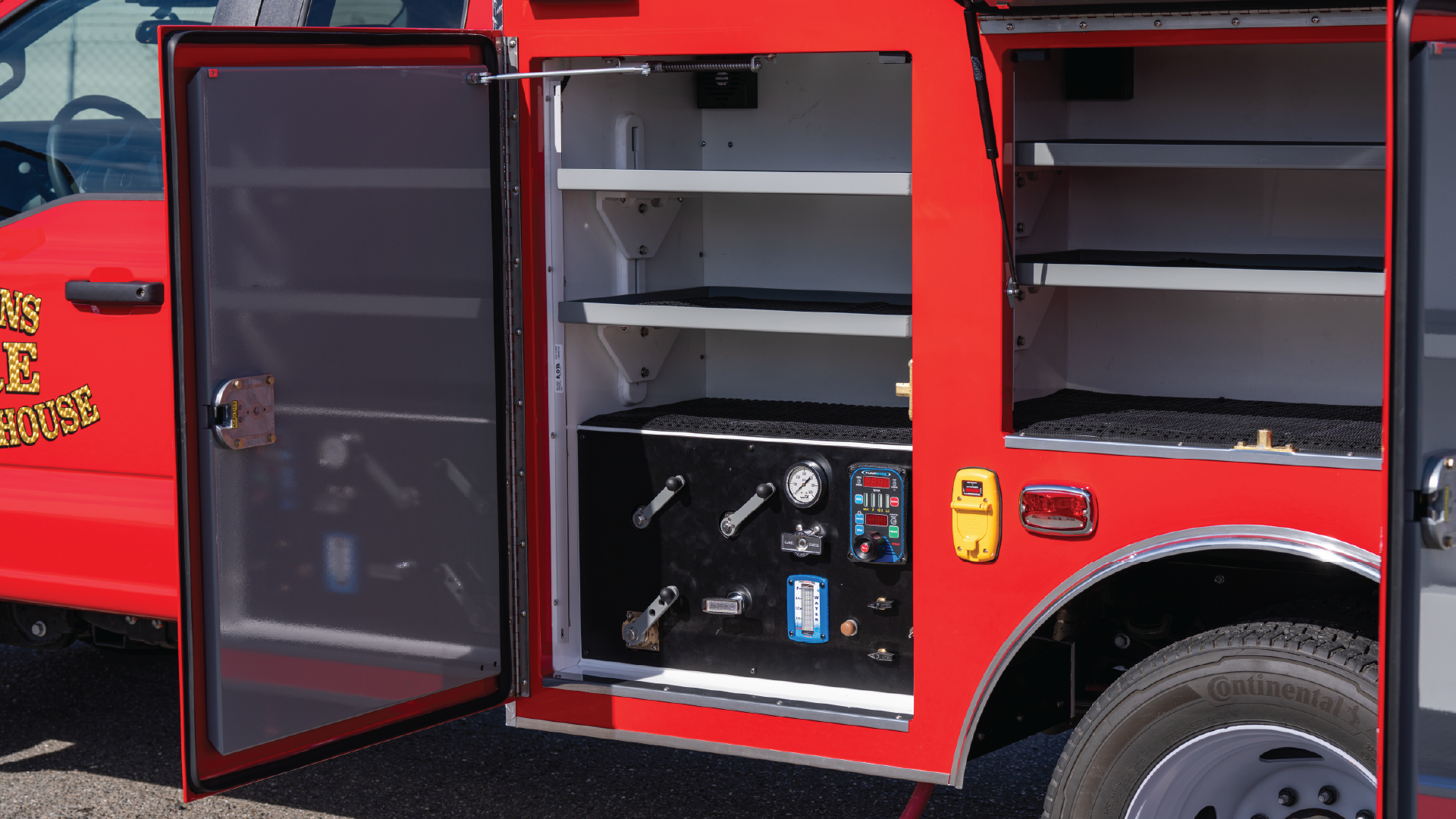

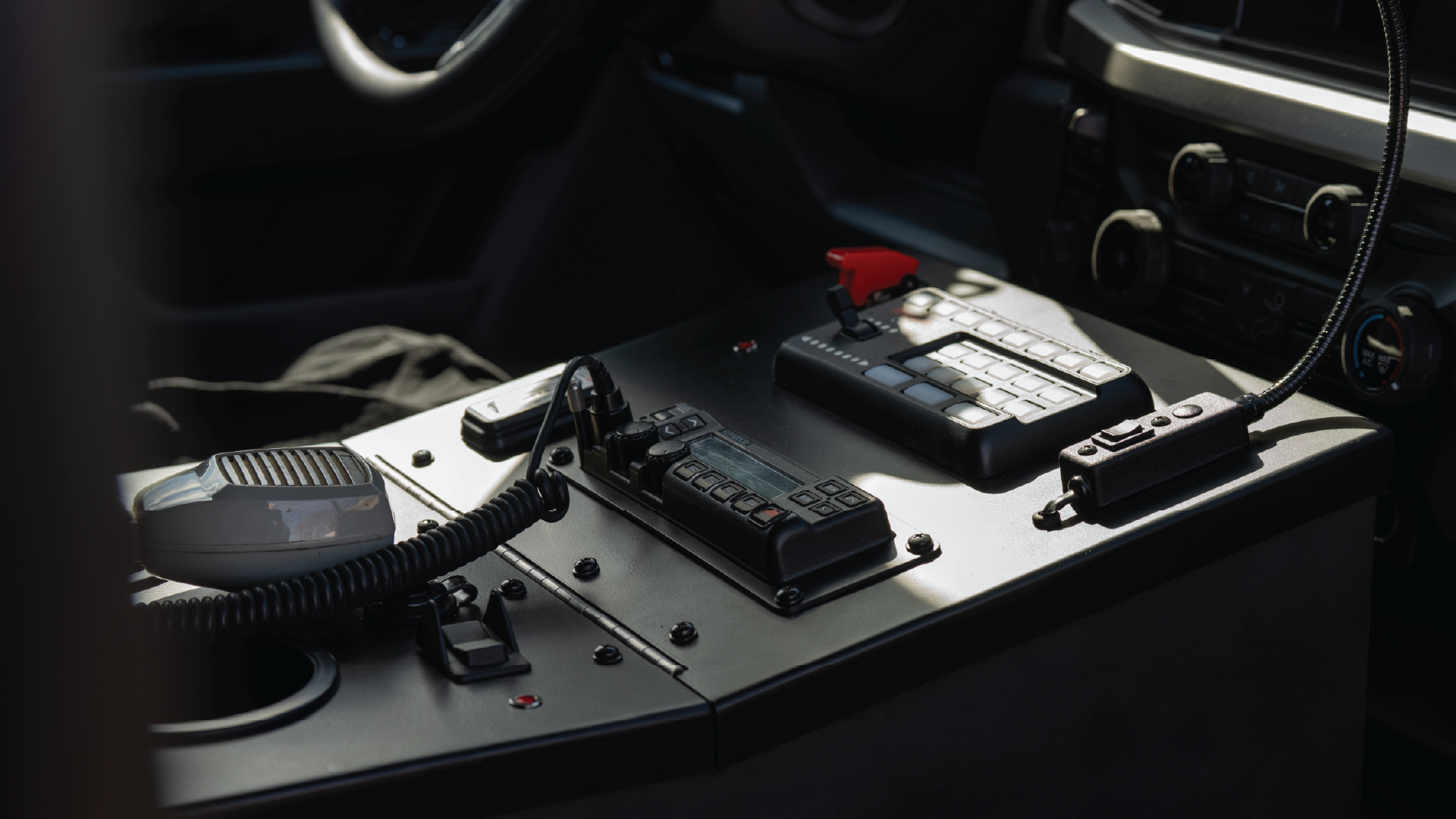

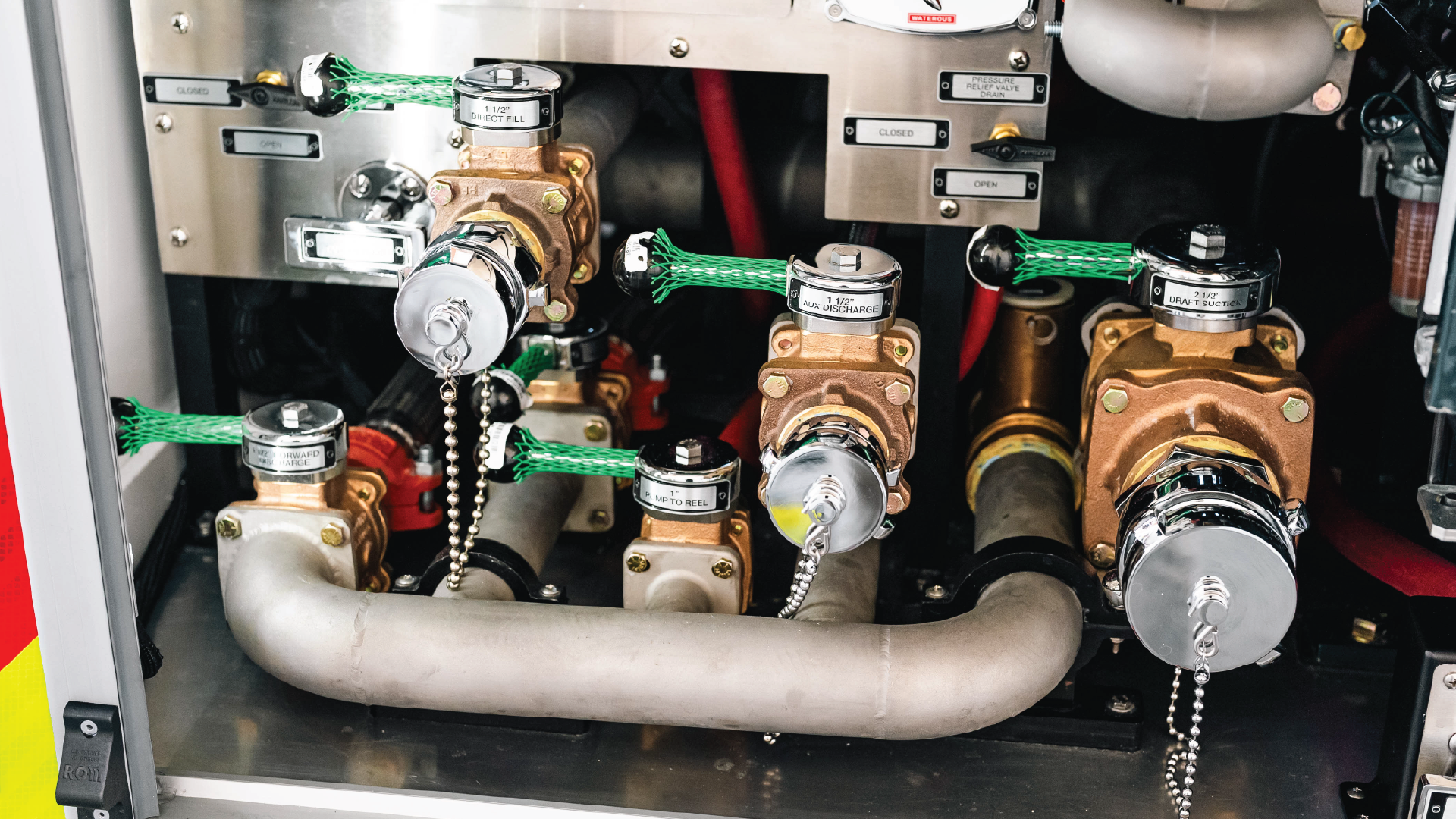

RANGE 6 Field Photo 1 RANGE 6 Field Photo 2 RANGE 6 Field Photo 3 RANGE 6 Field Photo 4 RANGE 6 Field Photo 5 RANGE 6 Field Photo 6

DOWNLOADABLE ASSETS

Spec sheets and reference documents for the RANGE 6™ lineup.

PDF Download RANGE 6™ Quick Spec Sheet (2026)
