LIGHT RESCUE
Call To Order866.308.6699
Build Yours
Agile Response & Recovery Apparatus

LIGHT RESCUE

A rapid-response rescue apparatus built on the Ford F-550 Super Crew platform with a 19,500 GVWR and spring-mounted steel body subframe. Available in M1 and M2 configurations, featuring ROM roll-up doors, extensive compartment shelving, a single rear pull-out tray, and your choice of a front transverse compartment or an extra-height body for maximized vertical storage.

Secure Your BuildSee It In Action
19,500
LBS GVWR Rating
60"
CAB-TO-AXLE
F-550
FORD SUPER CREW
70%
DUAL-DIRECTION TRAY EXTENSION
ROM
ROLL-UP DOORS
2
BODY CONFIGURATIONS

MODEL CONFIGURATIONS

Compare the structural layouts of the M1 and M2 models. Click "View Full Specs" to open the detail panel and evaluate the features.

LIGHT RESCUE M1

  • Body LayoutLR Compartments Standard
  • Primary FocusFront Transverse Compartment w/ Dual-Direction Slide Out Tray
  • Cab-To-Axle (C/A)60 Inches

LIGHT RESCUE M2

  • Body LayoutLR Compartments Extra Height
  • Primary FocusMaximized Vertical Storage Space
  • Cab-To-Axle (C/A)60 Inches

TECHNICAL SPECS

A comprehensive side-by-side breakdown of all standard apparatus loadouts and available equipment upgrades.

ALL STANDARD ITEMS

Chassis & Exterior

  • Ford F-550 60" c/a, XL Trim, Super Crew, 19,500 GVWR
  • Factory Suspension
  • QTAC Mud Flaps
  • Spring Mounted Steel Body Subframe
  • Factory Running Boards
  • Polished Accent Color & Black Wheel Well Liners
  • Body Paint Matched to Chassis (Single Color)
  • 3M Reflective Chevron Striping (Flo-Yellow + Red)

Bumpers & Rear of Body

  • Ford Factory Front Bumper
  • Steel Rear Bumper w/ Treadplate Cap
  • Grab Handle, Left Side
  • Fixed Steps, Left Side

Body & Compartments

  • LR Compartments Standard (M1) or Extra Height (M2)
  • Top Box Configuration A
  • ROM Roll Up Compartment Doors & Rear ROM Roll Up Door
  • Front Transverse Compartment w/ Dual-Direction, 70% Extension Slide Out Tray (M1)
  • Shelves, QTY 2 Per Compartment, L1/R1 (M2)
  • Shelves, QTY 1 Per Compartment, L2/R2
  • Shelves, QTY 2 Per Compartment, L3/R3
  • Electrical Access Panels
  • Passive Ventilation in Compartments
  • Single Rear Pull Out Tray

Electrical, Cab & Lighting

  • QTAC Model 1 Console
  • Under Rear Seat Electrical Box (Ford Only)
  • Installation of up to two (2) Customer Supplied Radios or Other Equipment
  • Power Tamer & Factory Backup Camera
  • Lighting Package 1 (Red/White)
  • Whelen WeCore Siren and Controller

ALL OPTIONAL ITEMS

Chassis & Protection Upgrades

  • Aftermarket Leveling Kit
  • Aftermarket HD Steering Damper
  • Off-Road Belly Pan Skid Plate
  • Powder Coated Black Steel Wheels
  • Heavy Duty All-Terrain Tires
  • AMP Research Retractable Running Boards
  • Tubular Nerf Bars with Steps

Bumper, Color & Exterior Upgrades

  • Steel Standard Depth Front Bumper w/ Winch Mount
  • Steel Extended Front Bumper w/ Winch Mount and Hose Tray
  • Aftermarket Front Bumper Brush Guard (Aftermarket Bumper Required)
  • Front Bumper Off-Road Light Bar
  • Front Skid Plate (Ford Only)
  • Warn 16.5ti Winch w/ Remote and BT Module
  • ARB Onboard Air Compressor
  • Pull Out Rear Steps Below Bumper
  • Rear Trailer Hitch - Curt Class 5, 2" w/ 5/8" Pin
  • Rear Attach Points Bolted to Frame Rails
  • Grab Handle & Fixed Steps, Right Side
  • Red, White, or Custom Truck Colors & Black Accent Color

Body & Compartment Accessories

  • Top Box Configuration A (Black Finish)
  • Top Box Configuration B or C (M1)
  • Tie Down Points on Outside/Inside Walls of Top Boxes or Top of Body
  • Fixed Scene Lights, 2 Per Side (M1)
  • Single Color Painted Roll Up Doors (All)
  • Additional Shelving for L1/R1 (M2), L2/R2, L3/R3
  • SCBA Storage in L2 (Rack for 2 Packs + 2 45-Min Spare Bottle Mounts)
  • Pac Tool Mount Board in R2 Compartment (Removes Shelf)
  • Aluminum Tool Board in L2 and/or R2 Compartments
  • Fuel Storage in L3 Compartment
  • Pull Out Tray in R3 Compartment
  • Dual Rear Pull Out Tray
  • Zolatone Finish in All Compartments
  • Active Ventilation in Compartments

Electrical, Lighting & Camera Upgrades

  • 2000W Xantrex Charger/Inverter
  • Power Outlets, One Duplex (L2/R2)
  • Additional Power Outlets, One Duplex (L1/R1 and R3)
  • Additional 100Ah Auxiliary Battery
  • Victron Standalone Power Bank w/ Solar
  • RVS 4 Camera System or RVS 2 Camera System
  • Lighting Package 2 (Blue/White) or Package 3 (Amber/White)
  • Low Profile Scene Lights, 2 Per Side (M2)
  • Flat Roof Mounted Scene Lights
  • Pole Lights, Front and/or Rear (One Pair)
  • Fender Mounted Spotlights
  • Diode Dynamics Off-Road Light Bar (Upper Zone A)
  • Liberty II Light Bar Protection

APPARATUS OVERVIEW

Discover why departments trust the LIGHT RESCUE for agile response, extensive equipment storage, and dependable everyday utility.

Agile Response

Built on the Ford F-550 XL Super Crew with factory suspension and a compact 60" cab-to-axle footprint, delivering 19,500 GVWR capability with nimble street and back-road handling.

Extensive Storage

Choose a front transverse compartment with a dual-direction 70% extension tray (M1) or an extra-height body for maximized vertical storage (M2), with shelving throughout and a rear pull-out tray.

Recovery Ready

Upgrade to a steel winch-mount bumper with a Warn 16.5ti winch, ARB onboard air, brush guard, and Class 5 rear hitch for full recovery and trailering capability.

Proven Hardware

Built with ROM roll-up doors, Whelen WeCore siren, QTAC Model 1 console, Power Tamer, and a spring-mounted steel body subframe for extreme endurance.

APPARATUS IN ACTION

Take a full walk-around of the LIGHT RESCUE and see it perform in the field.

Walk-Around Video Coming Soon

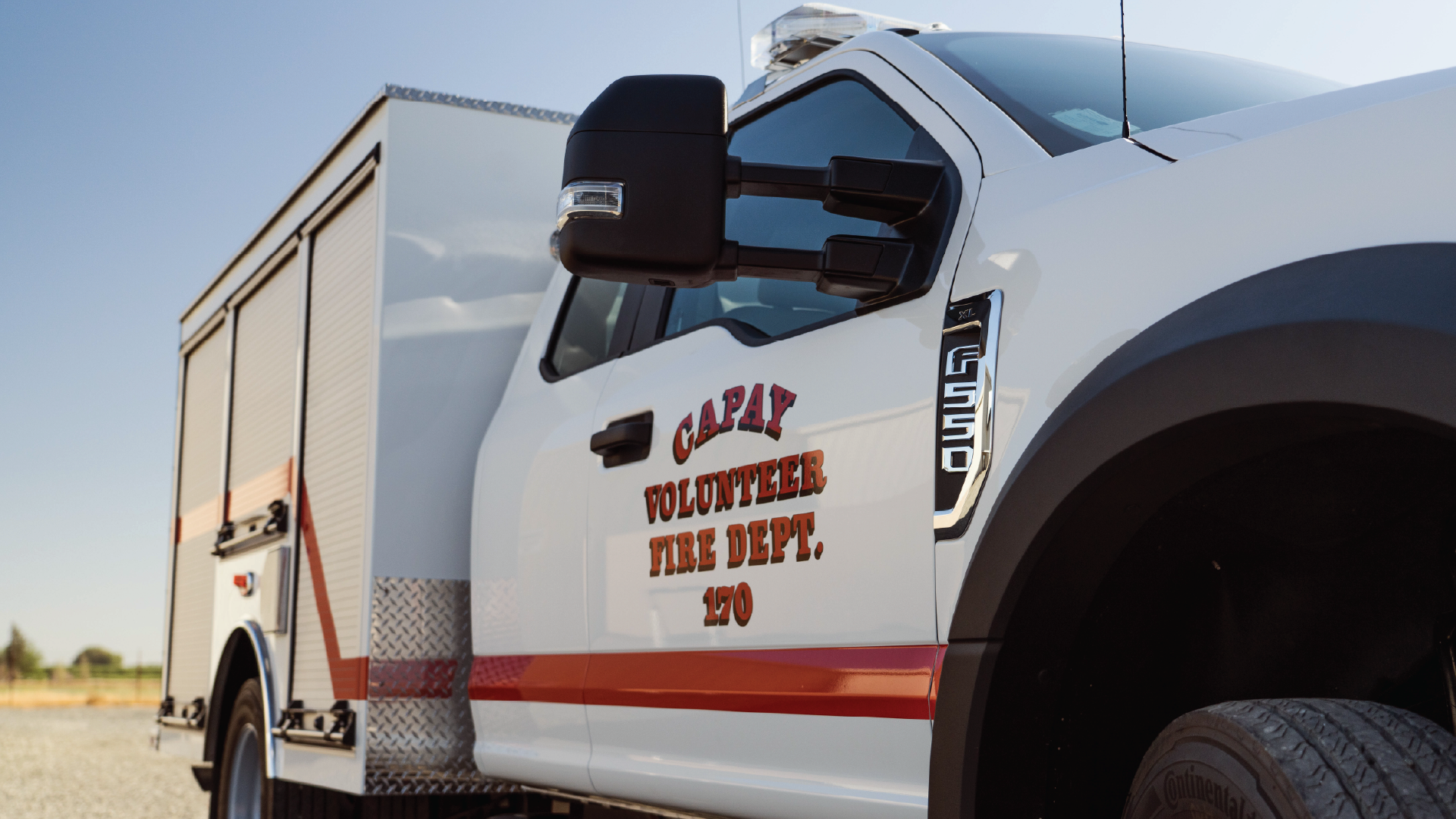

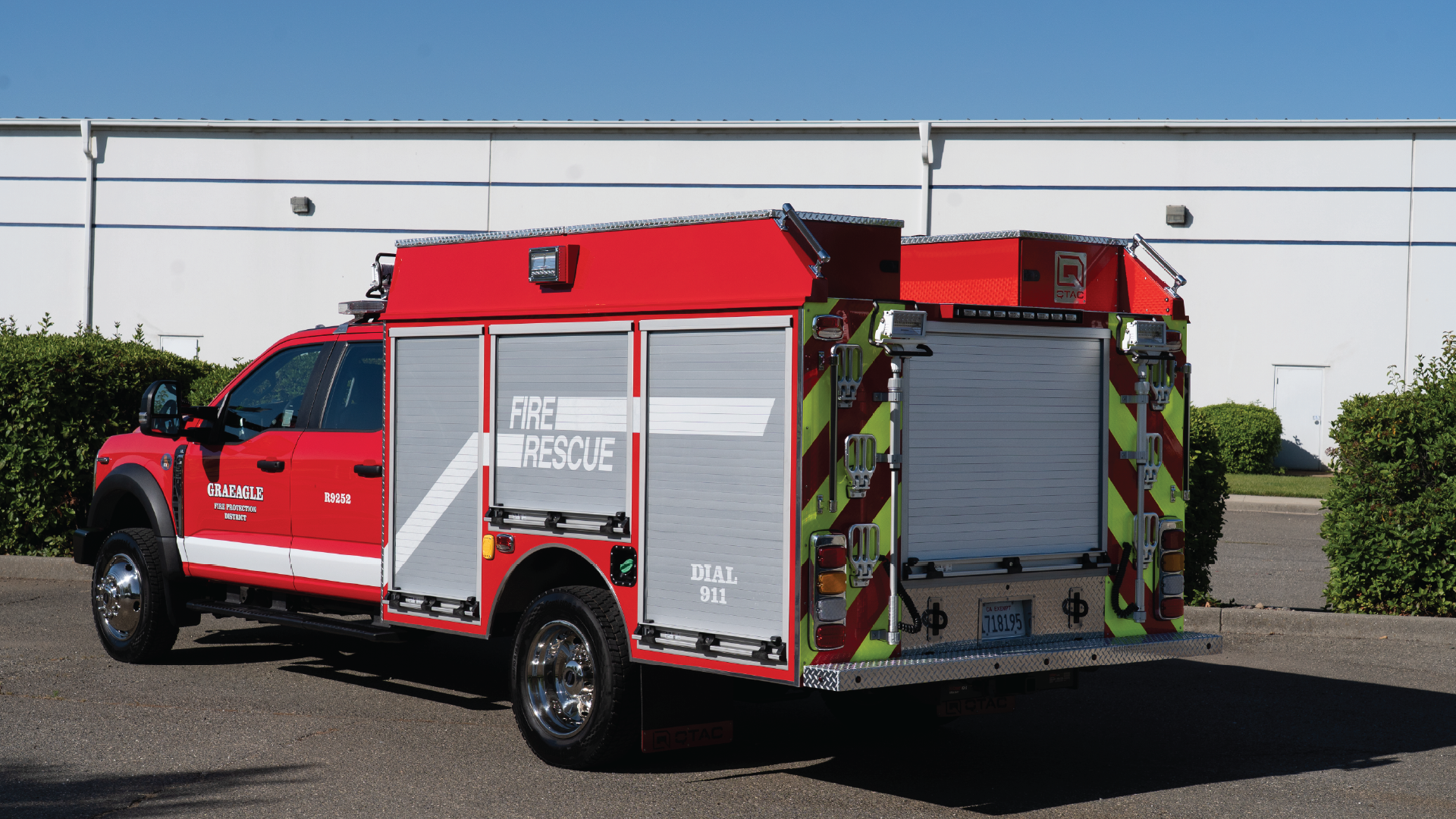

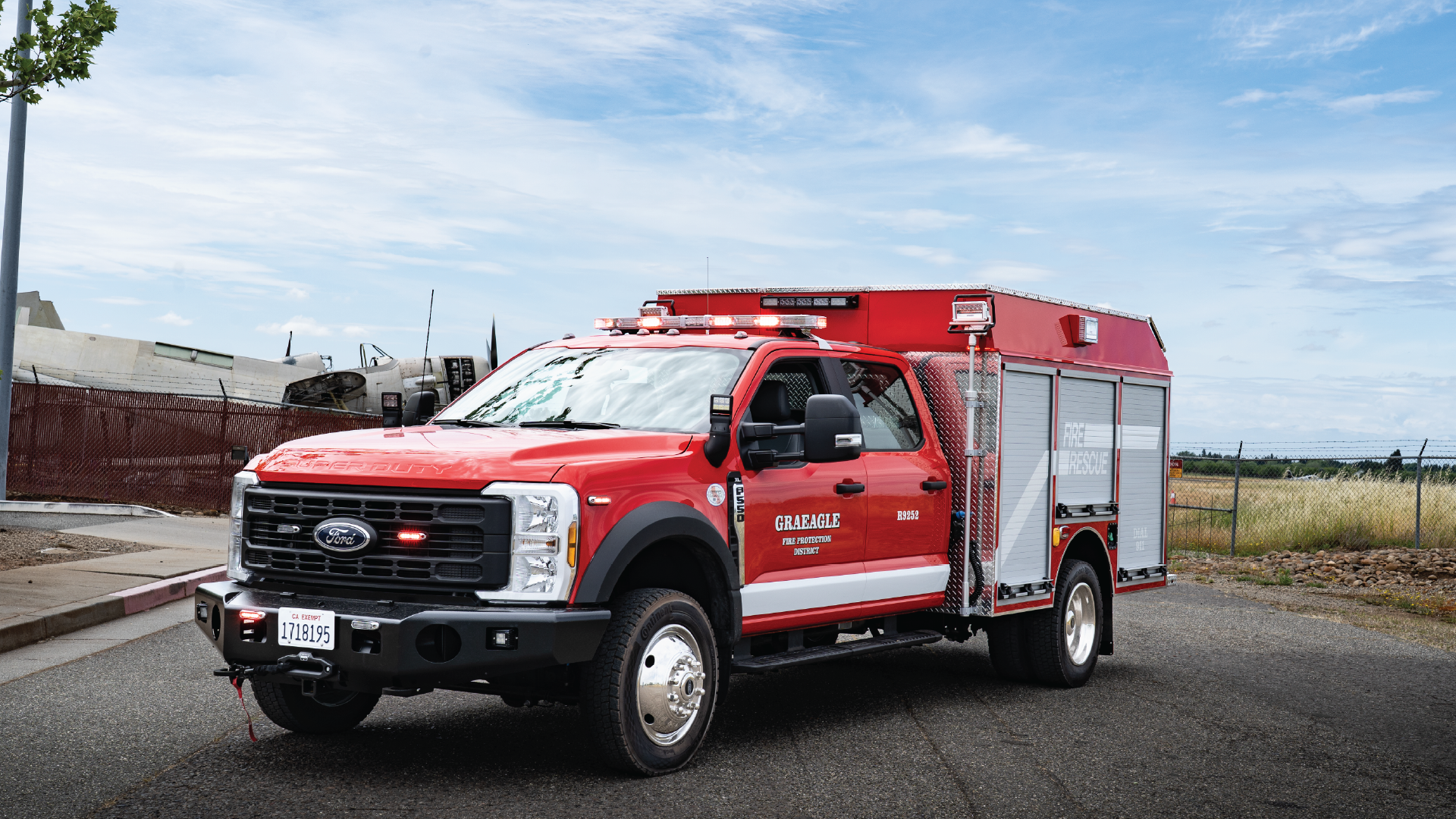

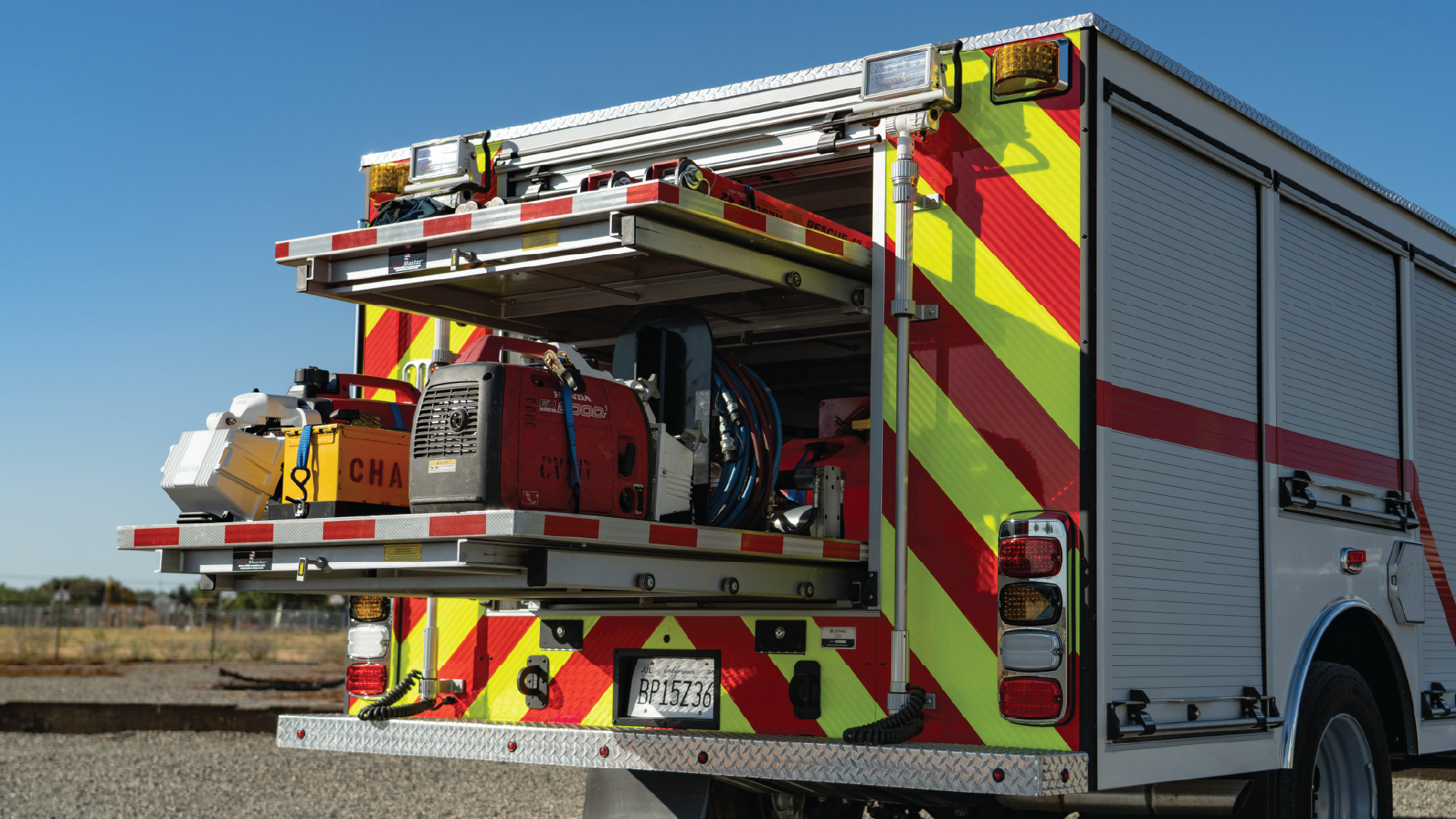

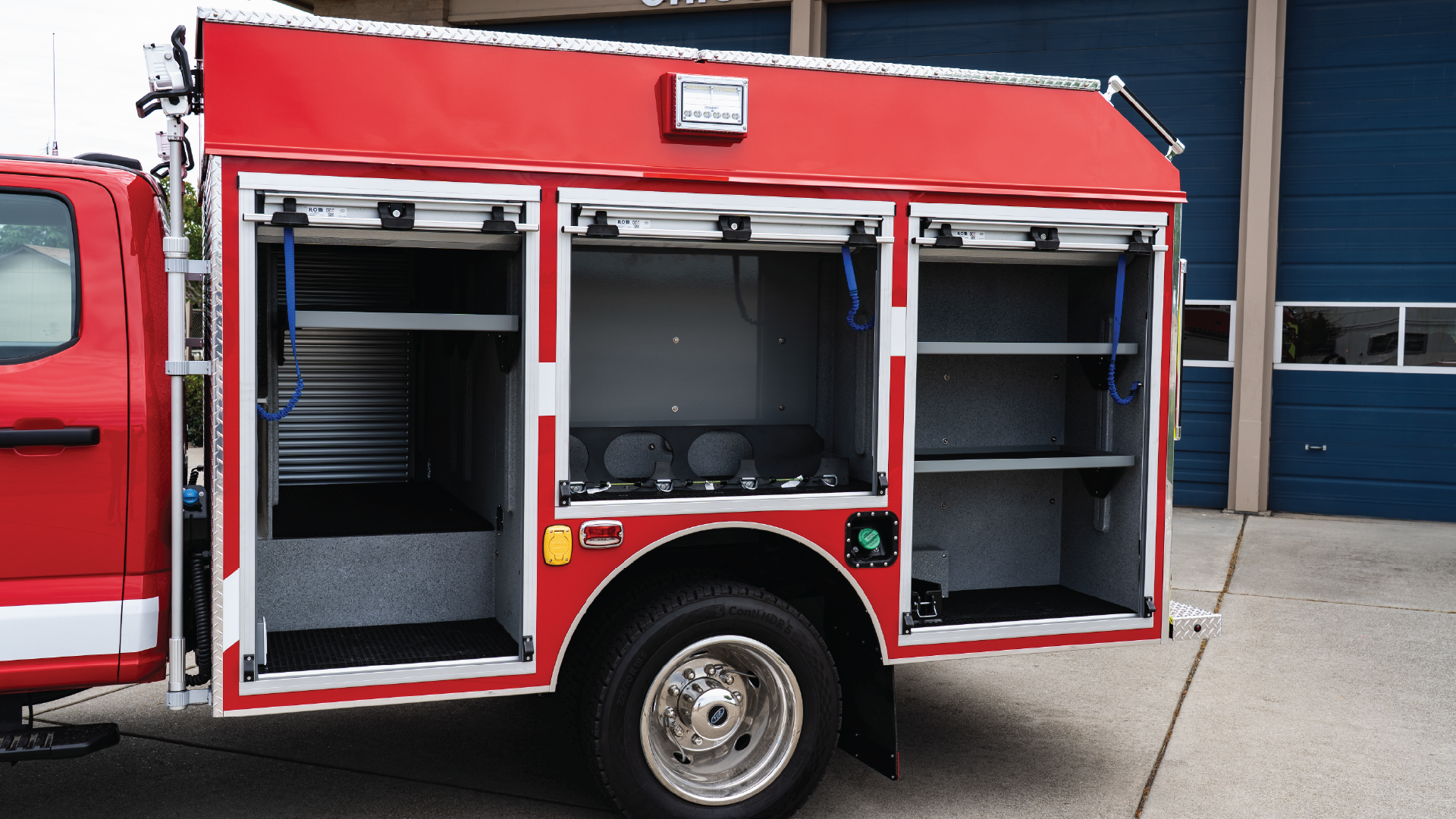

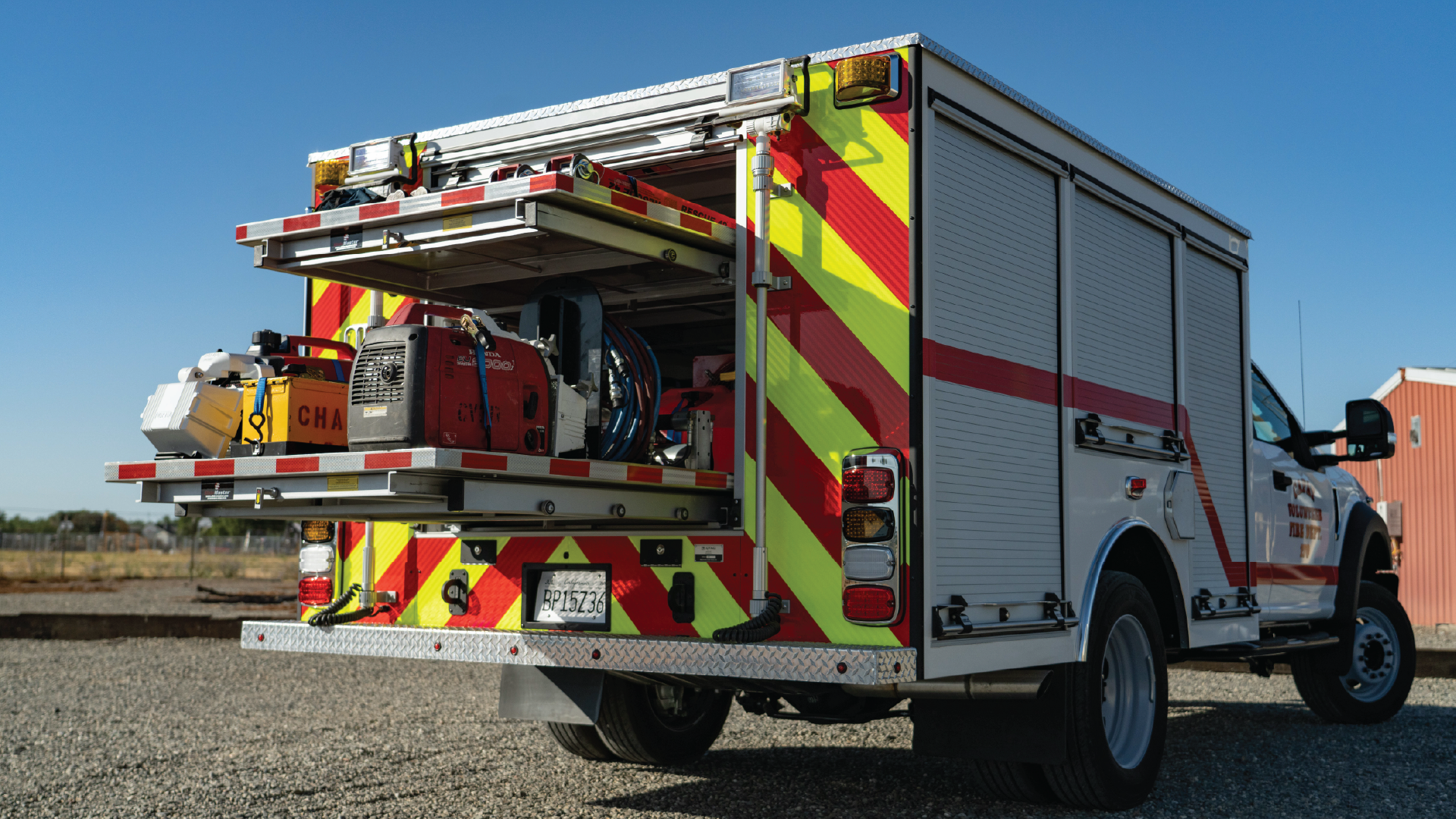

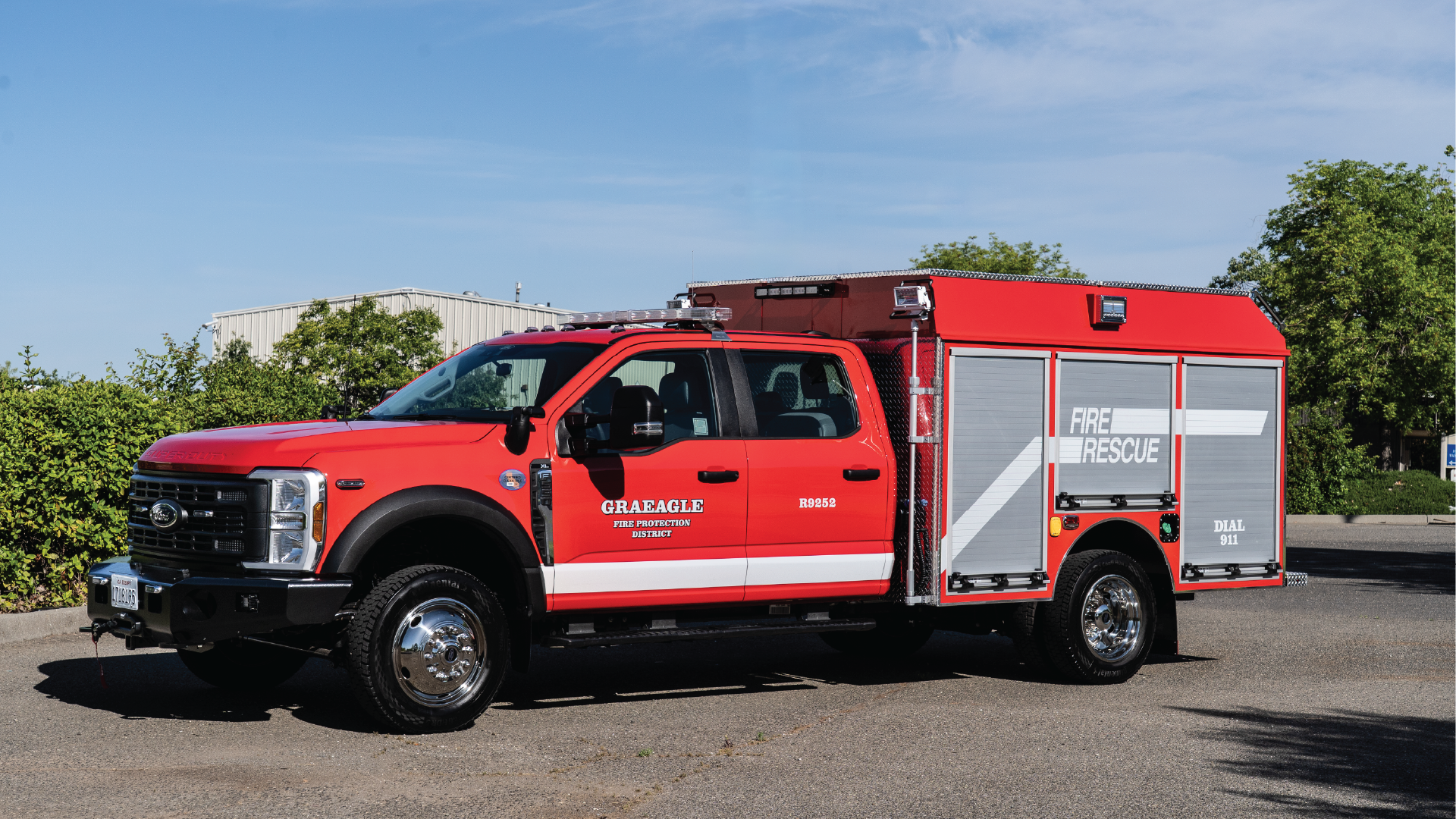

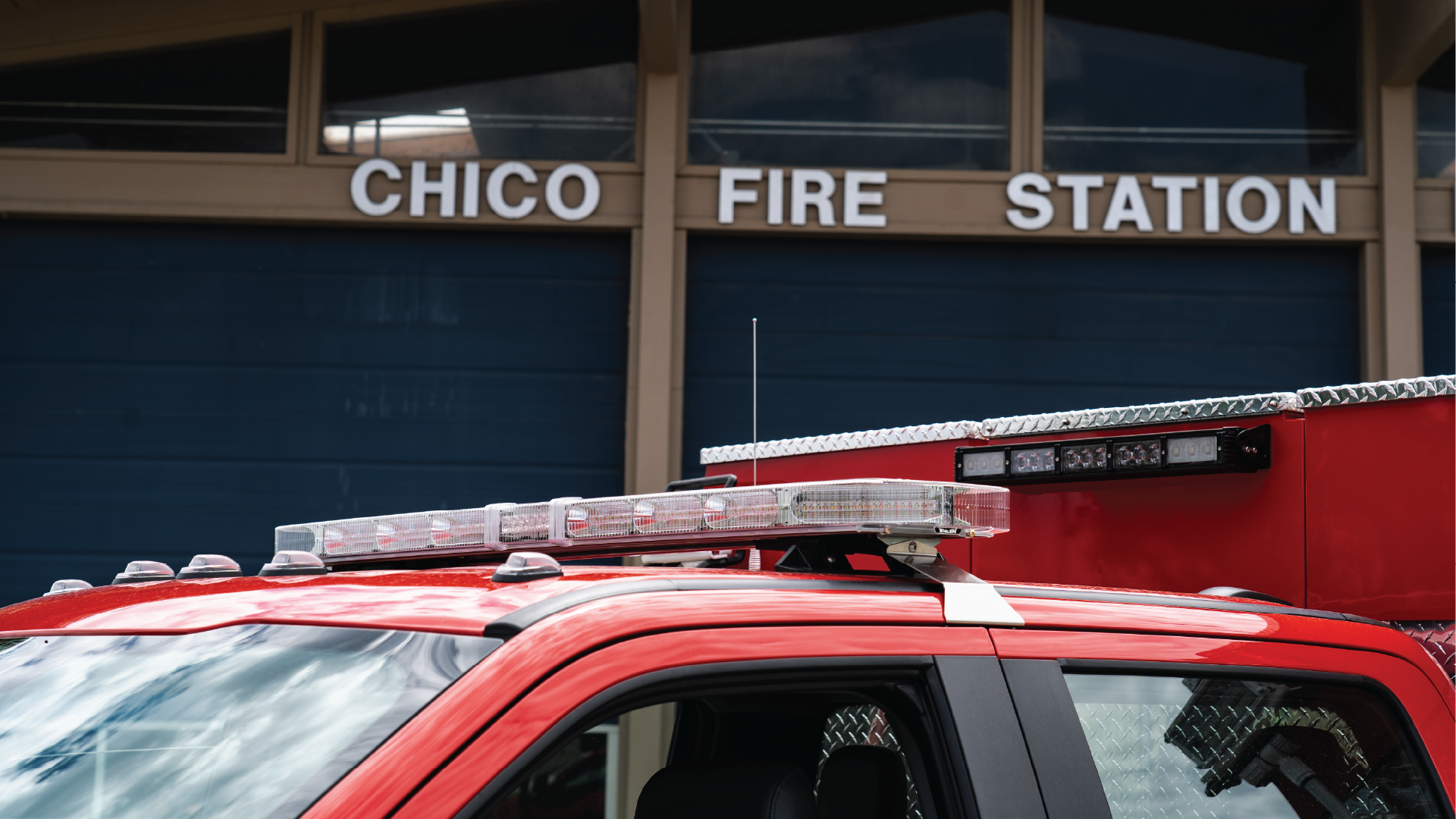

Light Rescue front three-quarter view Light Rescue side profile Light Rescue rear view Light Rescue compartment detail Light Rescue body detail Light Rescue storage layout Light Rescue top box detail Light Rescue rear compartment Light Rescue in service

DOWNLOADABLE ASSETS

Spec sheets and reference documents for the LIGHT RESCUE lineup.

PDF Download LIGHT RESCUE Quick Spec Sheet (2026) (PDF, opens in a new tab)

BUILD YOUR APPARATUS

Configure your LIGHT RESCUE below. Green boxes show what's already included with the base build. You may select multiple optional upgrades to customize your build. Click the " i " icon to learn more about each option.

1. Base Configuration
Select Your Model Configuration
Standard — IncludedBody & Color
  • LR Compartments Standard
  • LR Compartments Extra Height
  • Top Box Configuration A
  • Front Transverse Compartment w/ Dual-Direction, 70% Extension Slide Out Tray
  • Body Paint Matched to Chassis (Single Color)
  • Polished Accent Color & Black Wheel Well Liners
  • 3M Reflective Chevron Striping (Flo-Yellow + Red)

Included with every base build — options below are add-ons.

2. Chassis & Exterior Upgrades
Standard — IncludedChassis & Exterior
  • Ford F-550 60" c/a, XL Trim, Super Crew, 19,500 GVWR
  • Factory Suspension
  • QTAC Mud Flaps
  • Spring Mounted Steel Body Subframe
  • Factory Running Boards
Suspension, Protection, Wheels & Steps
Standard — IncludedBumpers & Rear of Body
  • Ford Factory Front Bumper
  • Steel Rear Bumper w/ Treadplate Cap
  • Grab Handle, Left Side
  • Fixed Steps, Left Side
Front Bumper Upgrades
Rear Bumper & Rear of Body Upgrades
3. Cab, Electrical & Lighting Upgrades
Standard — IncludedElectrical, Cab & Lighting
  • QTAC Model 1 Console
  • Under Rear Seat Electrical Box (Ford Only)
  • Installation of up to two (2) Customer Supplied Radios or Other Equipment
  • Power Tamer & Factory Backup Camera
  • Lighting Package 1 (Red/White)
  • Whelen WeCore Siren and Controller
Electrical Power Upgrades
Lighting Accessories
4. Body & Compartment Upgrades
Standard — IncludedBody & Compartments
  • ROM Roll Up Compartment Doors & Rear ROM Roll Up Door
  • Front Transverse Compartment w/ Dual-Direction, 70% Extension Slide Out Tray
  • Shelves, QTY 2 Per Compartment, L1/R1
  • Shelves, QTY 1 Per Compartment, L2/R2
  • Shelves, QTY 2 Per Compartment, L3/R3
  • Electrical Access Panels
  • Passive Ventilation in Compartments
  • Single Rear Pull Out Tray
Top of Body & Doors
Compartment Accessories & Storage
LIVE CONFIGURATION SPECS
QTAC Fire
LIGHT RESCUE M1 FORD F-550 60" C/A
Core Setup
Body StyleLR Compartments Standard
Color SchemeRed
AccentPolished
Top BoxConfiguration A
SuspensionFactory (Standard)
Storage FeatureFront Transverse Compartment
Electrical & Upgrades
LightingPackage 1
CameraFactory Backup
Upgrades Selected0 Add-ons
