QTAC SRT

Base Price
$4,895.00 (no storage boxes)

The QTAC is an all-weather, fully-enclosed fire suppression and storage system for UTVs.

  • BASE PRICE WITH KOSHIN SEH-40H PUMP: $7,890.00 (INCLUDES STORAGE BOXES)
  • BASE PRICE WITH WATERAX VERSAX 6 PUMP: $9,250.OO (INCLUDES STORAGE BOXES)
  • REMOVE $2,995.00 OFF PRICE TO OMIT STORAGE BOXES AND ORDER PUMP AND TANK ENCLOSURE ONLY
Place Order

$500 flat rate shipping charge to any commercial address in the contiguous U.S., depending on options ordered. Does not include additional services such as a liftgate or residential delivery.

QTAC SRT
overview

QTAC SRT

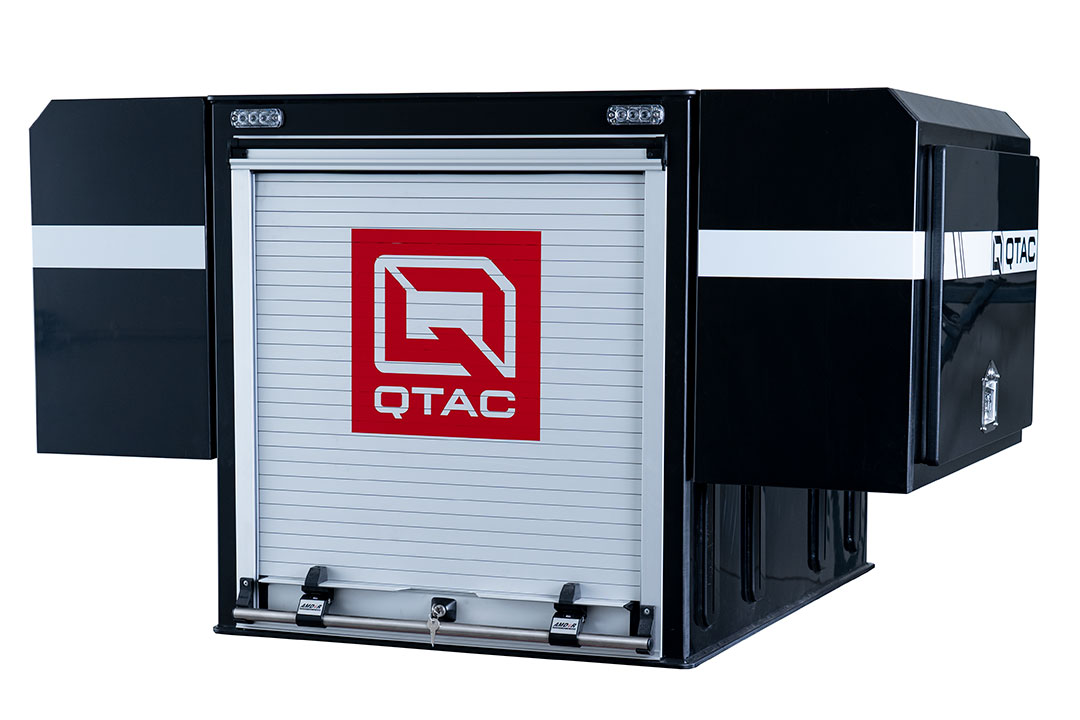

Introducing the QTAC SRT – the first and only fully-enclosed PolyTough™ storage, tank and pump system available for UTVs! The SRT is an exciting new modular, enclosed fire skid and storage system that takes off-road firefighting operations to a new level.

The SRT is available in 40, 50 and 60-gallon sizes, depending on the bed capacity of your UTV, and is configurable with storage boxes or other accessories, such as aside-mounted hose bed or open top drip torch storage bin.

Inside the enclosed pump compartment you’ll find either a Koshin SEH-40H medium pressure or Waterax Versax 6 high pressure pump, a Hannay electric hose reel and the standard array of QTAC plumbing – draft suction, tank-to-pump, 1” NPSH aux discharge and a 1” pump-to-tank. A Scotty around the pump foam proportioner and 2.5-gallon foam cell is optional, and the entire package is kept clean and out of the weather behind an AMDOR roll-up door.

Each optional side storage box bolts to an adjustable rail system on the side of the SRT pump enclosure, and features our custom QTAC low-profile hinged door - and over six cubic feet of storage. Now you can have water and pumping capability along with storage for your tools and loose equipment – all in one convenient package.

Advantage
  • Weather-resistant, fully-enclosed design
  • Available in 40, 50 and 60-gallon sizes
  • Two available pump sizes
  • Large side storage boxes are adjustable in height and don't require drilling into the bed for support
  • Electric Hannay hose reel comes asstandard equipment
Optional Equipment
  • Draft Hose Kit
  • Forklift Runners
  • Hannay Electric Hose Reel
  • Hose Reel Line up to 100 feet of 3/4″
  • Nozzle Upgrade
  • Scotty Around-the-Pump Foam Eductor
  • End-of-the-Line Foam
  • Tank Capacity Restrictor
  • 1-1/2″ NST Discharge
  • 2″ NST Threaded Suction
Specifications

QTAC SRT

Engine

HIGH PRESSURE ENGINE & PUMP

  • Model: Honda GX200 Series, 4-stroke horizontal shaft, OHV, air cooled gasoline
  • Maximum Power: 5.5 hp (4.1 KW) @ 3,600 RPM
  • Maximum Torque: 9.1 lb-ft (12.4 Nm) @ 2,500 RPM
  • Starting System: Manual, Recoil
  • Pump Type: Waterax Versax 6 Self-Priming 2-Stage Centrifugal
  • Intake: 2″ Male NPT
  • Discharge: 1-1/2″, 1″, 1″ Male NPT, 2″ Male BSP

MEDIUM PRESSURE ENGINE & PUMP

  • Model: Honda GXH50 Series, 4-stroke OHV, air cooled gasoline
  • Maximum Power: 2.1 HP (1.6 kW) @ 7,000 rpm
  • Maximum Torque: 2.0 lb-ft (2.7 Nm) @ 4,500 rpm
  • Starting System: Manual, Recoil
  • Pump Type: Koshin SEH-40H Single Stage Pump
  • Intake: 1-1/2″ Male NPT
  • Discharge: 1-1/2″, 1″, 1″ Male NPT, 2″ Male BSP
Pump
Tank
  • Type: MTECH PolyTough™ welded copolymer, internally baffled
  • Capacity: 40 U.S. Gallons (available in 50 and 60-gallon options)
  • Fill Well: 4″ fill tower, vented
  • Drain: 1-1/2″ plunger style

WEIGHTS (40-GALLON TANK)

  • Dry weight, Koshin SEH-40H: 415 lbs.
  • Wet weight, Koshin SEH-40H: 750 lbs.
  • Dry weight, Waterax Versax 6: 445 lbs.
  • Wet weight, Waterax Versax 6: 779 lbs.

Additional weight per component:

Around-the-Pump Foam

  • 2.5-gallon
  • Dry Weight: 7 lbs.
  • Wet Weight: 28 lbs.

*All weights are approximate

Weight
QTAC SRT
PUMP

Waterax Versax-6

Compare this pump curve to any other small wildland firefighting pump on the market

No items found.
PumP

Pump Options

Compare this pump curve to any other small wildland firefighting pump on the market
